Problem 282
282

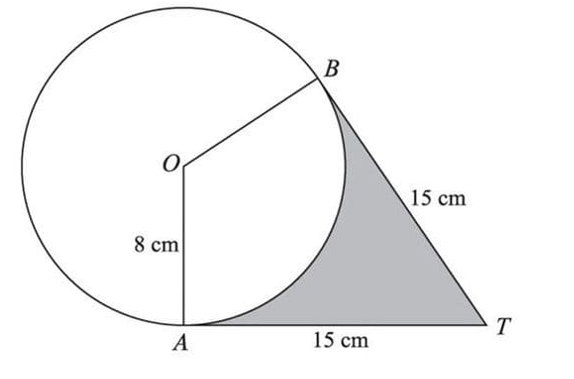

The diagram shows a circle with centre O and radius 8 cm. Points A and B lie on the circle. The tangents at A and B meet at the point T, and AT = BT = 15 cm.
(i) Show that angle AOB is 2.16 radians, correct to 3 significant figures.
(ii) Find the perimeter of the shaded region.
(iii) Find the area of the shaded region.
Solution
(i) To find angle AOB, use the tangent formula in the right triangle formed by the radius and the tangent: \(\tan(\frac{x}{2}) = \frac{15}{8} = 1.875\). Solving for \(\frac{x}{2}\), we get \(\frac{x}{2} = 1.081\). Therefore, \(x = 2.16\) radians.
(ii) The perimeter of the shaded region is the sum of the lengths of AT, BT, and the arc AB. The arc length is given by \(r\theta = 8 \times 2.16 = 17.3\) cm. Thus, the perimeter is \(15 + 15 + 17.3 = 47.3\) cm.
(iii) The area of sector AOB is \(\frac{1}{2} r^2 \theta = \frac{1}{2} \times 8^2 \times 2.16 = 69.1\) cm². The area of triangle AOT is \(2 \times \frac{1}{2} \times 8 \times 15 = 120\) cm². The shaded area is \(120 - 69.1 = 50.9\) cm².
