9709 P12 - Jun 2012 - Q6
262

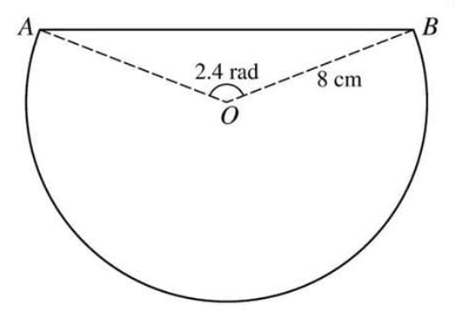

The diagram shows a metal plate made by removing a segment from a circle with centre O and radius 8 cm. The line AB is a chord of the circle and angle AOB = 2.4 radians. Find
- the length of AB,
- the perimeter of the plate,
- the area of the plate.
Solutions locked. Please sign in with access to view them.
