Problem 243
243

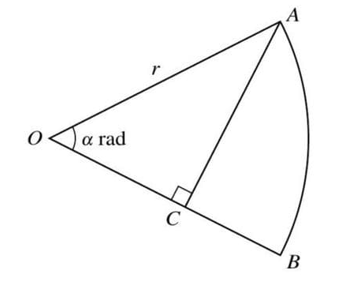

In the diagram, OAB is a sector of a circle with centre O and radius r. The point C on OB is such that angle ACO is a right angle. Angle AOB is α radians and is such that AC divides the sector into two regions of equal area.
(i) Show that \(\sin \alpha \cos \alpha = \frac{1}{2} \alpha\).
It is given that the solution of the equation in part (i) is \(\alpha = 0.9477\), correct to 4 decimal places.
(ii) Find the ratio perimeter of region OAC : perimeter of region ACB, giving your answer in the form k : 1, where k is given correct to 1 decimal place.
(iii) Find angle AOB in degrees.
Solution
(i) To show \(\sin \alpha \cos \alpha = \frac{1}{2} \alpha\), consider the area of triangle \(\triangle OAC\). The area is \(\frac{1}{2} r^2 \sin \alpha \cos \alpha\). Since \(AC\) divides the sector into two regions of equal area, the area of \(\triangle OAC\) is half the area of sector \(OAB\), which is \(\frac{1}{2} \times \frac{1}{2} r^2 \alpha\). Equating these gives \(\frac{1}{2} r^2 \sin \alpha \cos \alpha = \frac{1}{2} \times \frac{1}{2} r^2 \alpha\), simplifying to \(\sin \alpha \cos \alpha = \frac{1}{2} \alpha\).
(ii) The perimeter of \(\triangle OAC\) is \(r + r \sin \alpha + r \cos \alpha = 2.4r\). The perimeter of \(ACB\) is \(r\alpha + r \sin \alpha + r - r \cos \alpha = 2.18r\) or \(2.17r\). The ratio is \(\frac{2.4}{2.18} : 1 = 1.1 : 1\).
(iii) Given \(\alpha = 0.9477\) radians, convert to degrees: \(0.9477 \times \frac{180}{\pi} \approx 54.3°\).
