Problem 224
224

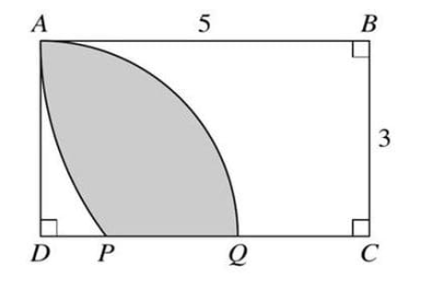

The diagram shows a rectangle ABCD in which AB = 5 units and BC = 3 units. Point P lies on DC and AP is an arc of a circle with centre B. Point Q lies on DC and AQ is an arc of a circle with centre D.

(i) Show that angle ABP = 0.6435 radians, correct to 4 decimal places.

(ii) Calculate the areas of the sectors BAP and DAQ.

(iii) Calculate the area of the shaded region.

9709_circular_44
