9709 P13 - Jun 2022 - Q9 - 8 marks
189

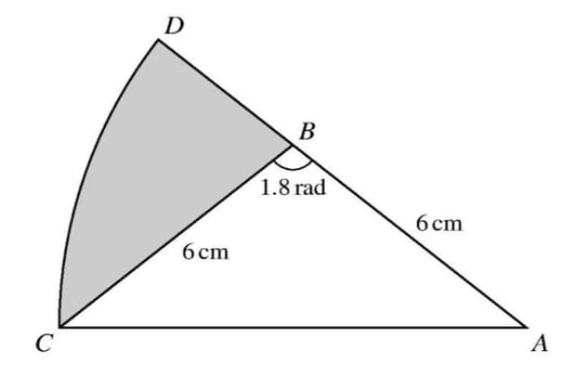

The diagram shows triangle ABC with AB=BC=6 cm and angle ABC=1.8 radians. The arc CD is part of a circle with centre A and ABD is a straight line.
(a) Find the perimeter of the shaded region. [5]
(b) Find the area of the shaded region. [3]
