Nov 2019 p12 q5
1185

The diagram shows a solid cone which has a slant height of 15 cm and a vertical height of h cm.

(i) Show that the volume, V cm3, of the cone is given by \(V = \frac{1}{3}\pi(225h - h^3)\).

[The volume of a cone of radius r and vertical height h is \(\frac{1}{3}\pi r^2 h\).]

(ii) Given that h can vary, find the value of h for which V has a stationary value. Determine, showing all necessary working, the nature of this stationary value.

problem image 1185
Log in to record attempts.
June 2013 p12 q8
1186

The volume of a solid circular cylinder of radius r cm is 250\(\pi\) cm3.

  1. Show that the total surface area, S cm2, of the cylinder is given by \(S = 2\pi r^2 + \frac{500\pi}{r}\).
  2. Given that r can vary, find the stationary value of S.
  3. Determine the nature of this stationary value.
Log in to record attempts.
Nov 2012 p12 q3
1187

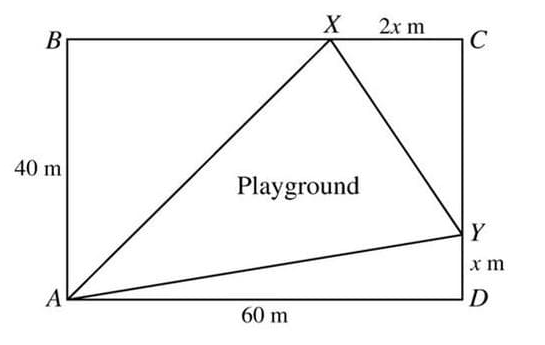

The diagram shows a plan for a rectangular park ABCD, in which AB = 40 m and AD = 60 m. Points X and Y lie on BC and CD respectively and AX, XY and YA are paths that surround a triangular playground. The length of DY is x m and the length of XC is 2x m.

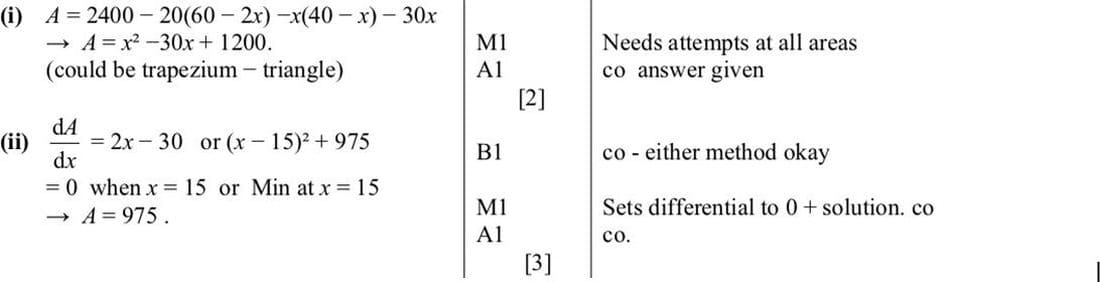

  1. Show that the area, A mยฒ, of the playground is given by A = xยฒ - 30x + 1200.
  2. Given that x can vary, find the minimum area of the playground.
problem image 1187
Log in to record attempts.
Nov 2011 p11 q7
1188

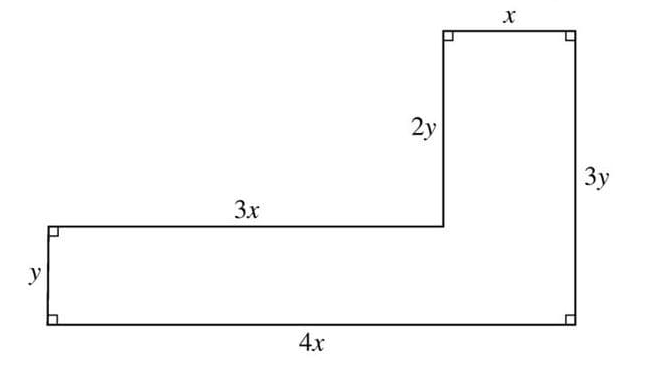

The diagram shows the dimensions in metres of an L-shaped garden. The perimeter of the garden is 48 m.

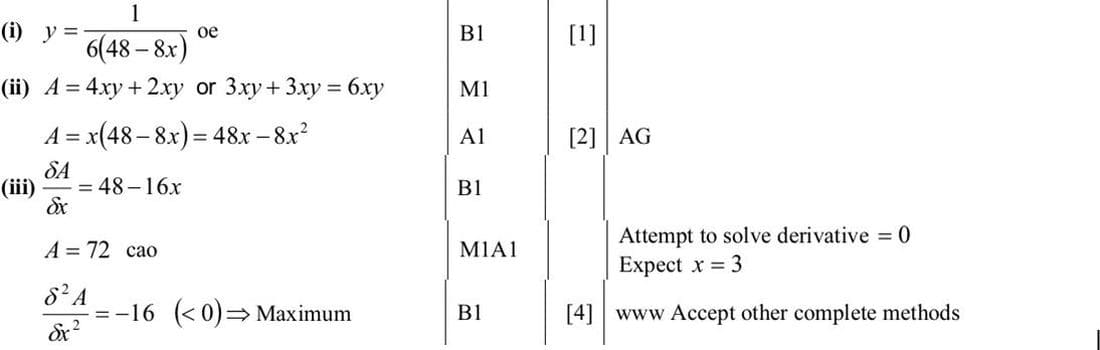

  1. Find an expression for y in terms of x.
  2. Given that the area of the garden is A m2, show that A = 48x - 8x2.
  3. Given that x can vary, find the maximum area of the garden, showing that this is a maximum value rather than a minimum value.
problem image 1188
Log in to record attempts.
Nov 2010 p12 q10
1189

The diagram shows an open rectangular tank of height \(h\) metres covered with a lid. The base of the tank has sides of length \(x\) metres and \(\frac{1}{2}x\) metres and the lid is a rectangle with sides of length \(\frac{5}{4}x\) metres and \(\frac{4}{5}x\) metres. When full the tank holds \(4 \text{ m}^3\) of water. The material from which the tank is made is of negligible thickness. The external surface area of the tank together with the area of the top of the lid is \(A \text{ m}^2\).

  1. Express \(h\) in terms of \(x\) and hence show that \(A = \frac{3}{2}x^2 + \frac{24}{x}\).
  2. Given that \(x\) can vary, find the value of \(x\) for which \(A\) is a minimum, showing clearly that \(A\) is a minimum and not a maximum.
problem image 1189
Log in to record attempts.
