Nov 2023 p43 q4
3493

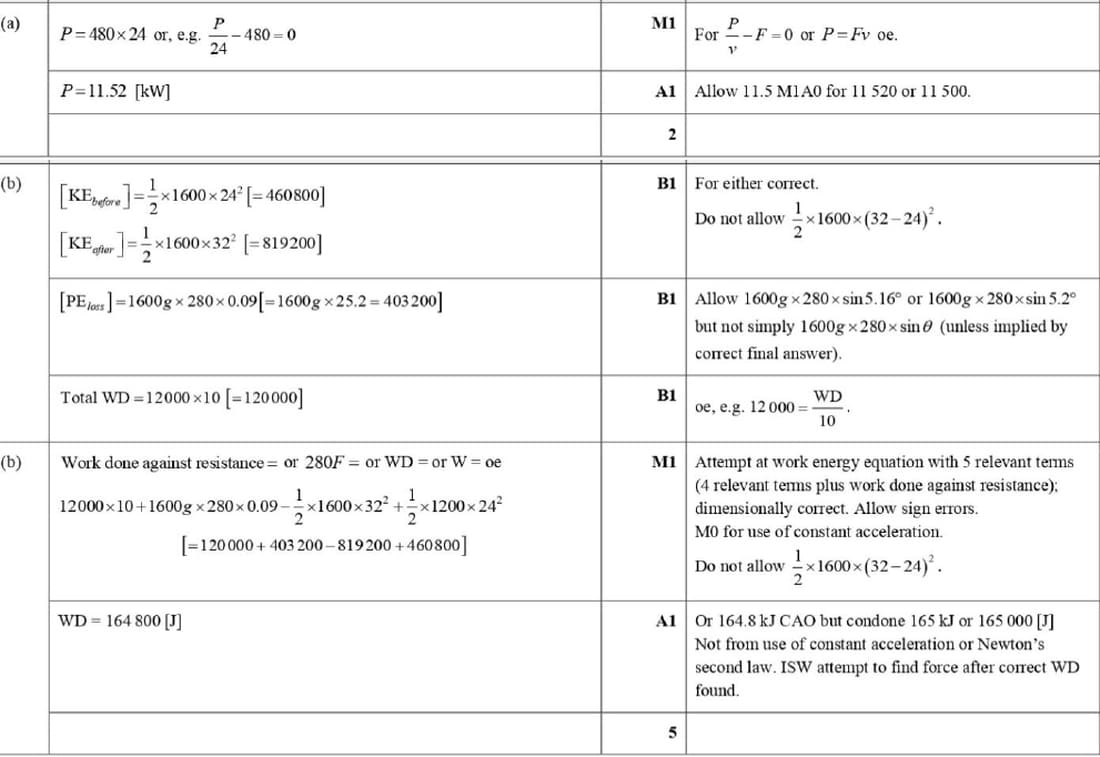

A car has mass 1600 kg.

(a) The car is moving along a straight horizontal road at a constant speed of 24 m/s and is subject to a constant resistance of magnitude 480 N.

Find, in kW, the rate at which the engine of the car is working.

The car now moves down a hill inclined at an angle of \(\theta\) to the horizontal, where \(\sin \theta = 0.09\). The engine of the car is working at a constant rate of 12 kW. The speed of the car is 24 m/s at the top of the hill. Ten seconds later the car has travelled 280 m down the hill and has speed 32 m/s.

(b) Given that the resistance is not constant, use an energy method to find the total work done against the resistance during the ten seconds.

Log in to record attempts.
June 2022 p42 q6
3494

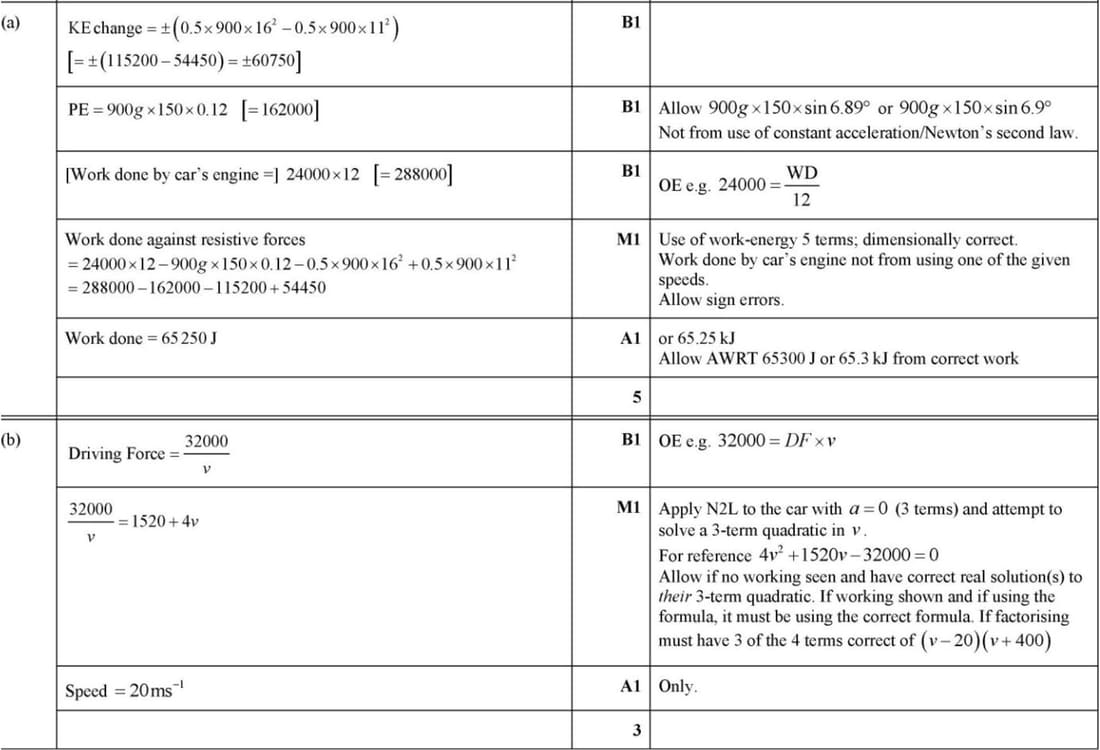

A car of mass 900 kg is moving up a hill inclined at \(\sin^{-1} 0.12\) to the horizontal. The initial speed of the car is 11 m s\(^{-1}\). After 12 s, the car has travelled 150 m up the hill and has speed 16 m s\(^{-1}\). The engine of the car is working at a constant rate of 24 kW.

(a) Find the work done against the resistive forces during the 12 s.

The car then travels along a straight horizontal road. There is a resistance to the motion of the car of \((1520 + 4v)\) N when the speed of the car is \(v\) m s\(^{-1}\). The car travels at a constant speed with the engine working at a constant rate of 32 kW.

(b) Find this speed.

Log in to record attempts.
June 2022 p41 q5
3495

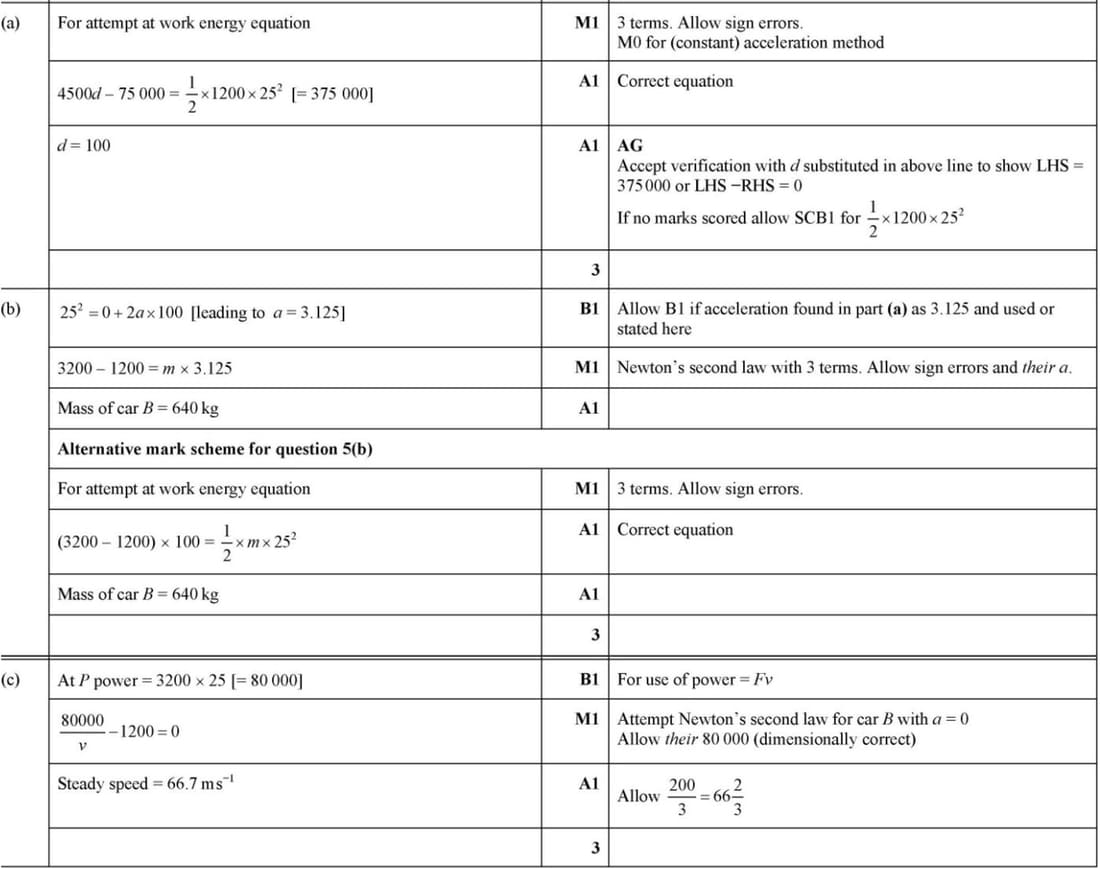

Two racing cars A and B are at rest alongside each other at a point O on a straight horizontal test track. The mass of A is 1200 kg. The engine of A produces a constant driving force of 4500 N. When A arrives at a point P its speed is 25 m/s. The distance OP is d m. The work done against the resistance force experienced by A between O and P is 75000 J.

  1. Show that d = 100.
  2. Car B starts off at the same instant as car A. The two cars arrive at P simultaneously and with the same speed. The engine of B produces a driving force of 3200 N and the car experiences a constant resistance to motion of 1200 N.
  3. Find the mass of B.
  4. Find the steady speed which B can maintain when its engine is working at the same rate as it is at P.
Log in to record attempts.
Feb/Mar 2022 p42 q3
3496

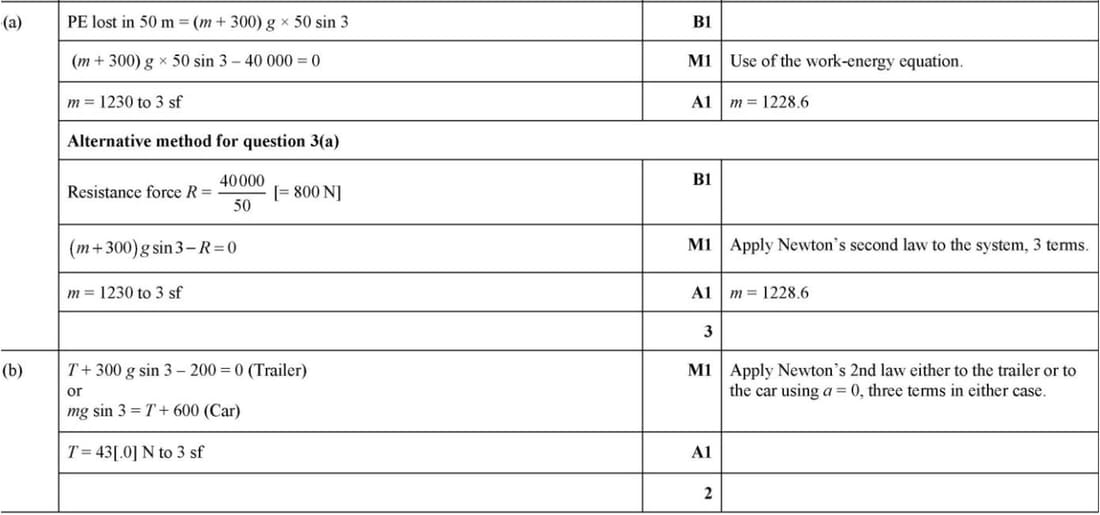

A car of mass m kg is towing a trailer of mass 300 kg down a straight hill inclined at 3ยฐ to the horizontal at a constant speed. There are resistance forces on the car and on the trailer, and the total work done against the resistance forces in a distance of 50 m is 40000 J. The engine of the car is doing no work and the tow-bar is light and rigid.

(a) Find the value of m.

The resistance force on the trailer is 200 N.

(b) Find the tension in the tow-bar between the car and the trailer.

Log in to record attempts.
Feb/Mar 2022 p42 q1
3497

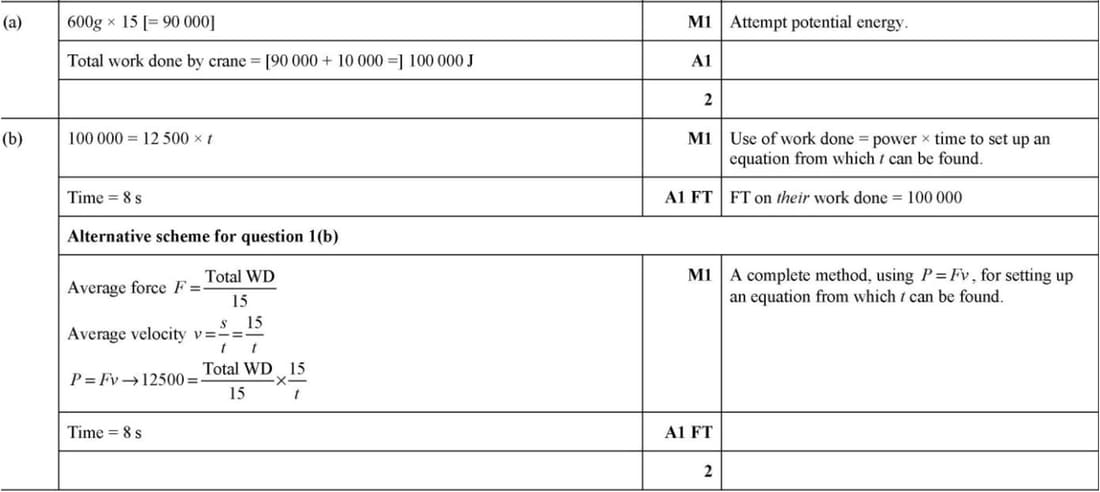

A crane is used to raise a block of mass 600 kg vertically upwards at a constant speed through a height of 15 m. There is a resistance to the motion of the block, which the crane does 10,000 J of work to overcome.

(a) Find the total work done by the crane.

(b) Given that the average power exerted by the crane is 12.5 kW, find the total time for which the block is in motion.

Log in to record attempts.
