June 2019 p43 q4
3959

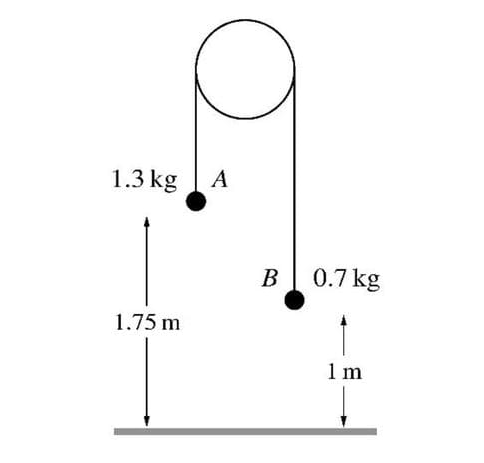

Two particles A and B, of masses 1.3 kg and 0.7 kg respectively, are connected by a light inextensible string which passes over a smooth fixed pulley. Particle A is 1.75 m above the floor and particle B is 1 m above the floor (see diagram). The system is released from rest with the string taut, and the particles move vertically. When the particles are at the same height the string breaks.

(i) Show that, before the string breaks, the magnitude of the acceleration of each particle is 3 m s-2 and find the tension in the string.

(ii) Find the difference in the times that it takes the particles to hit the ground.

problem image 3959
Log in to record attempts.
June 2019 p42 q5
3960

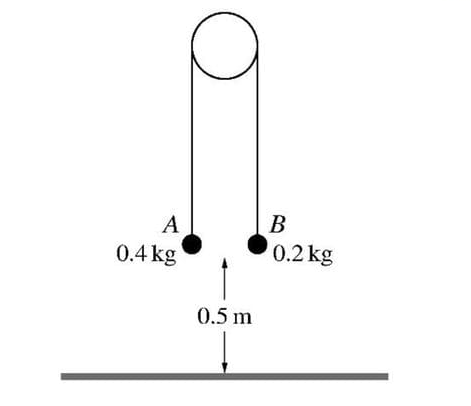

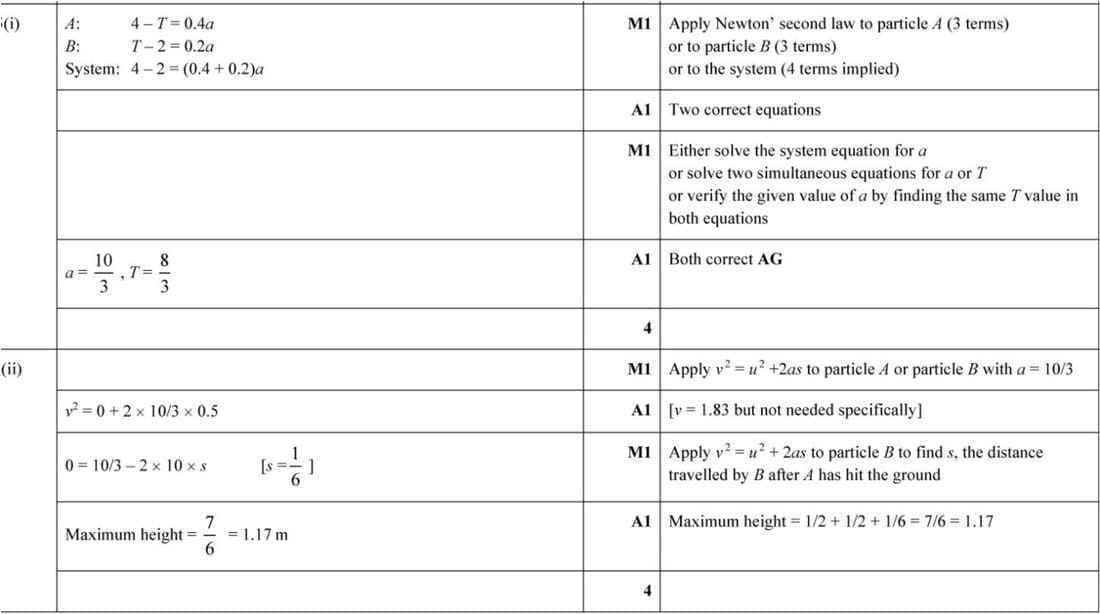

Two particles A and B, of masses 0.4 kg and 0.2 kg respectively, are connected by a light inextensible string which passes over a fixed smooth pulley. Both A and B are 0.5 m above the ground. The particles hang vertically (see diagram). The particles are released from rest. In the subsequent motion B does not reach the pulley and A remains at rest after reaching the ground.

(i) For the motion before A reaches the ground, show that the magnitude of the acceleration of each particle is \(\frac{10}{3} \text{ m s}^{-2}\) and find the tension in the string. [4]

(ii) Find the maximum height of B above the ground. [4]

problem image 3960
Log in to record attempts.
Nov 2018 p43 q5
3961

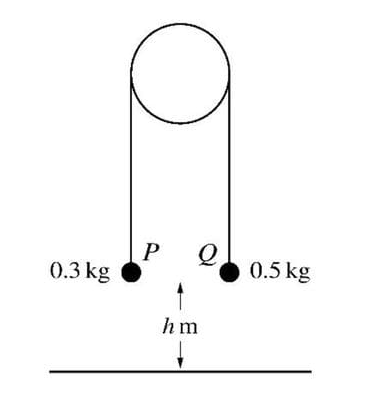

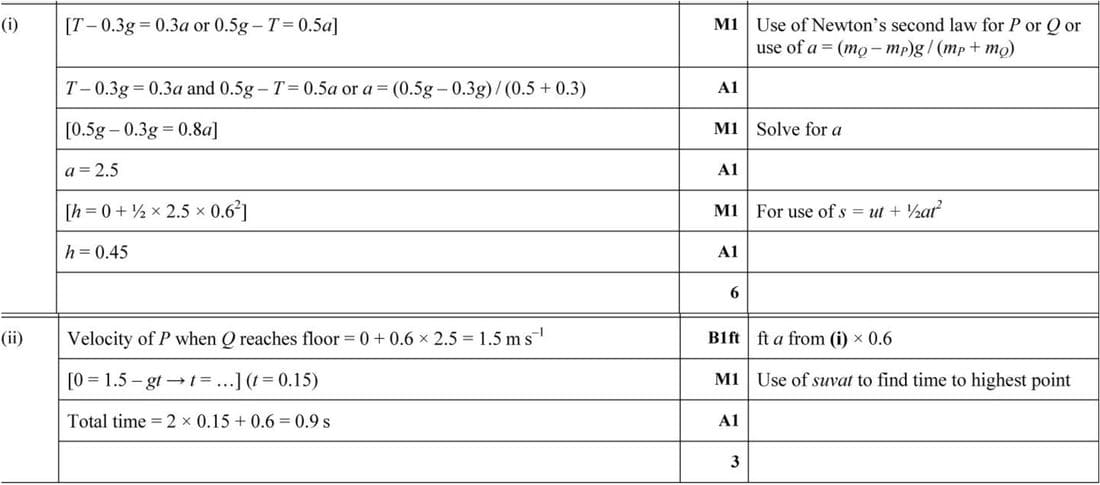

Two particles P and Q, of masses 0.3 kg and 0.5 kg respectively, are attached to the ends of a light inextensible string. The string passes over a fixed smooth pulley with the particles hanging freely below it. Q is held at rest with the string taut at a height of h m above a horizontal floor (see diagram). Q is now released and both particles start to move. The pulley is sufficiently high so that P does not reach it at any stage. The time taken for Q to reach the floor is 0.6 s.

(i) Find the acceleration of Q before it reaches the floor and hence find the value of h.

Q remains at rest when it reaches the floor, and P continues to move upwards.

(ii) Find the velocity of P at the instant when Q reaches the floor and the total time taken from the instant at which Q is released until the string becomes taut again.

problem image 3961
Log in to record attempts.
Nov 2018 p41 q4
3962

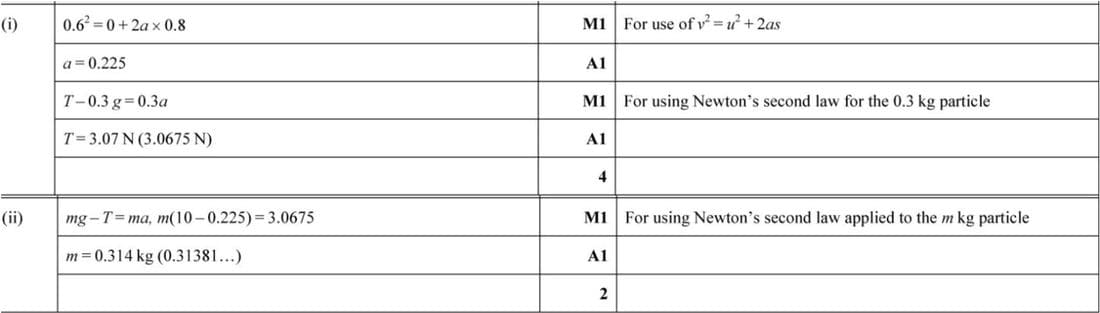

Two particles A and B, of masses m kg and 0.3 kg respectively, are attached to the ends of a light inextensible string. The string passes over a fixed smooth pulley and the particles hang freely below it. The system is released from rest, with both particles 0.8 m above horizontal ground. Particle A reaches the ground with a speed of 0.6 m s-1.

(i) Find the tension in the string during the motion before A reaches the ground.

(ii) Find the value of m.

Log in to record attempts.
Feb/Mar 2018 p42 q1
3963

Two particles A and B, of masses 0.8 kg and 0.2 kg respectively, are connected by a light inextensible string that passes over a fixed smooth pulley. The particles hang vertically. The system is released from rest. Show that the acceleration of A has magnitude 6 m s-2 and find the tension in the string.

Log in to record attempts.
