Nov 2011 p42 q5
3949

Particles A and B, of masses 0.9 kg and 0.6 kg respectively, are attached to the ends of a light inextensible string. The string passes over a fixed smooth pulley. The system is released from rest with the string taut, with its straight parts vertical and with the particles at the same height above the horizontal floor. In the subsequent motion, B does not reach the pulley.

(i) Find the acceleration of A and the tension in the string during the motion before A hits the floor.

After A hits the floor, B continues to move vertically upwards for a further 0.3 s.

(ii) Find the height of the particles above the floor at the instant that they started to move.

Log in to record attempts.
Nov 2011 p41 q2
3950

Particles A of mass 0.65 kg and B of mass 0.35 kg are attached to the ends of a light inextensible string which passes over a fixed smooth pulley. B is held at rest with the string taut and both of its straight parts vertical. The system is released from rest and the particles move vertically. Find the tension in the string and the magnitude of the resultant force exerted on the pulley by the string.

Log in to record attempts.
Nov 2009 p42 q6
3951

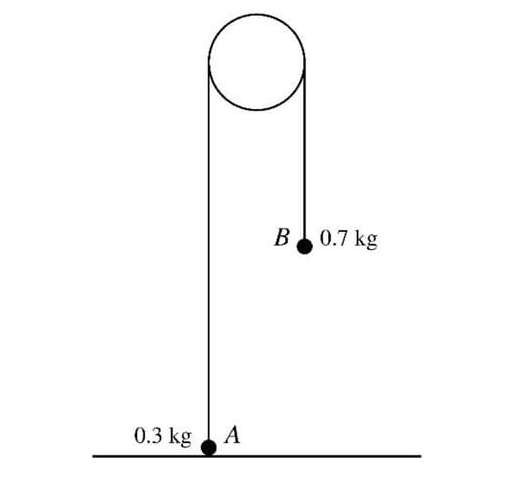

Particles A and B, of masses 0.3 kg and 0.7 kg respectively, are attached to the ends of a light inextensible string which passes over a smooth fixed pulley. Particle A is held on the horizontal floor and particle B hangs in equilibrium. Particle A is released and both particles start to move vertically.

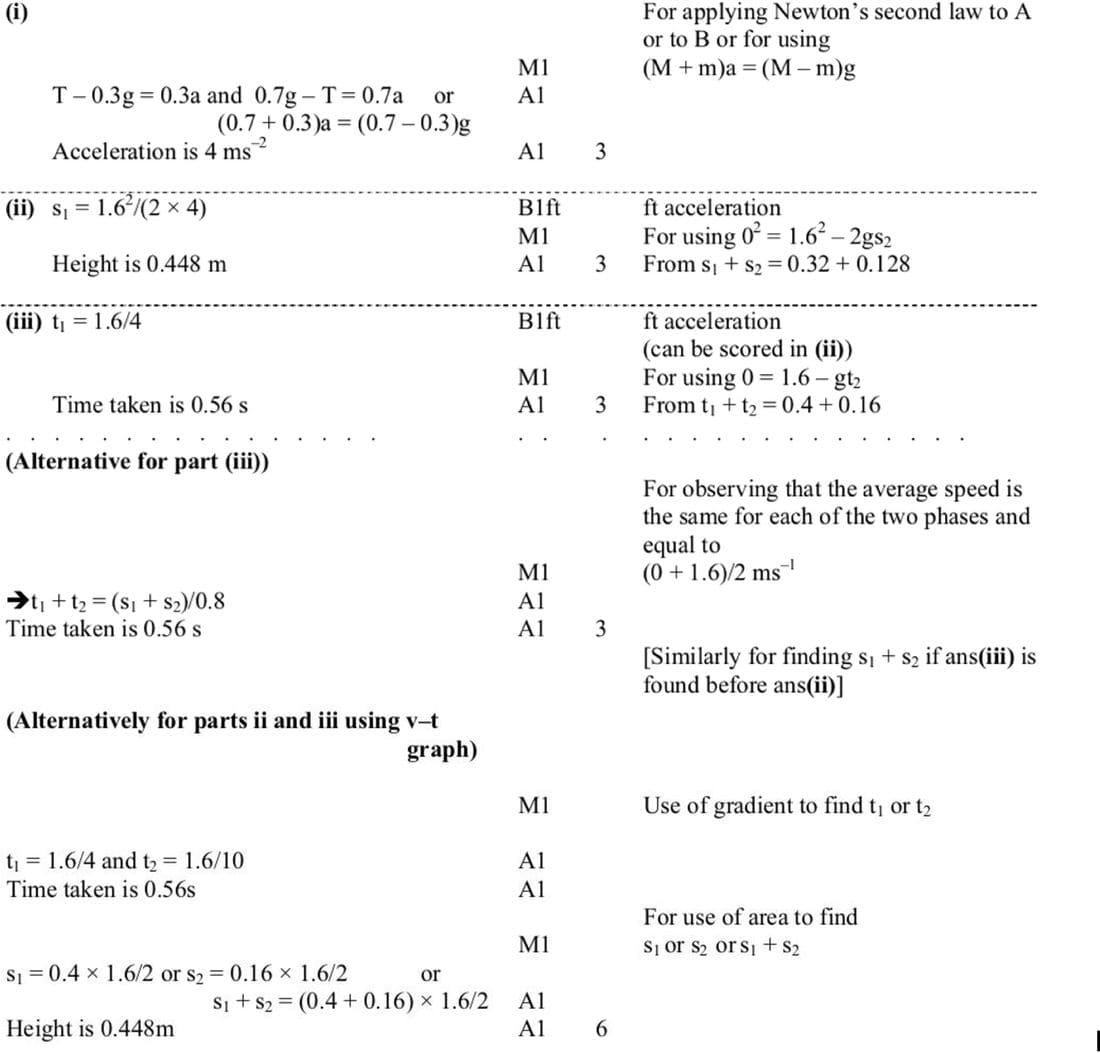

  1. Find the acceleration of the particles.

The speed of the particles immediately before B hits the floor is 1.6 m s-1. Given that B does not rebound upwards, find

  1. the maximum height above the floor reached by A,
  2. the time taken by A, from leaving the floor, to reach this maximum height.
problem image 3951
Log in to record attempts.
Nov 2009 p41 q6
3952

Particles P and Q, of masses 0.55 kg and 0.45 kg respectively, are attached to the ends of a light inextensible string which passes over a smooth fixed pulley. The particles are held at rest with the string taut and its straight parts vertical. Both particles are at a height of 5 m above the ground (see diagram). The system is released.

(i) Find the acceleration with which P starts to move. [3]

The string breaks after 2 s and in the subsequent motion P and Q move vertically under gravity.

(ii) At the instant that the string breaks, find

  1. the height above the ground of P and of Q,
  2. the speed of the particles.

(iii) Show that Q reaches the ground 0.8 s later than P. [4]

problem image 3952
Log in to record attempts.
June 2009 p4 q6
3953

Particles A and B are attached to the ends of a light inextensible string which passes over a smooth pulley. The system is held at rest with the string taut and its straight parts vertical. Both particles are at a height of 0.36 m above the floor (see diagram). The system is released and A begins to fall, reaching the floor after 0.6 s.

  1. Find the acceleration of A as it falls. [2]

The mass of A is 0.45 kg. Find

  1. the tension in the string while A is falling, [2]
  2. the mass of B, [3]
  3. the maximum height above the floor reached by B. [3]
problem image 3953
Log in to record attempts.
