Nov 2019 p41 q4
4060

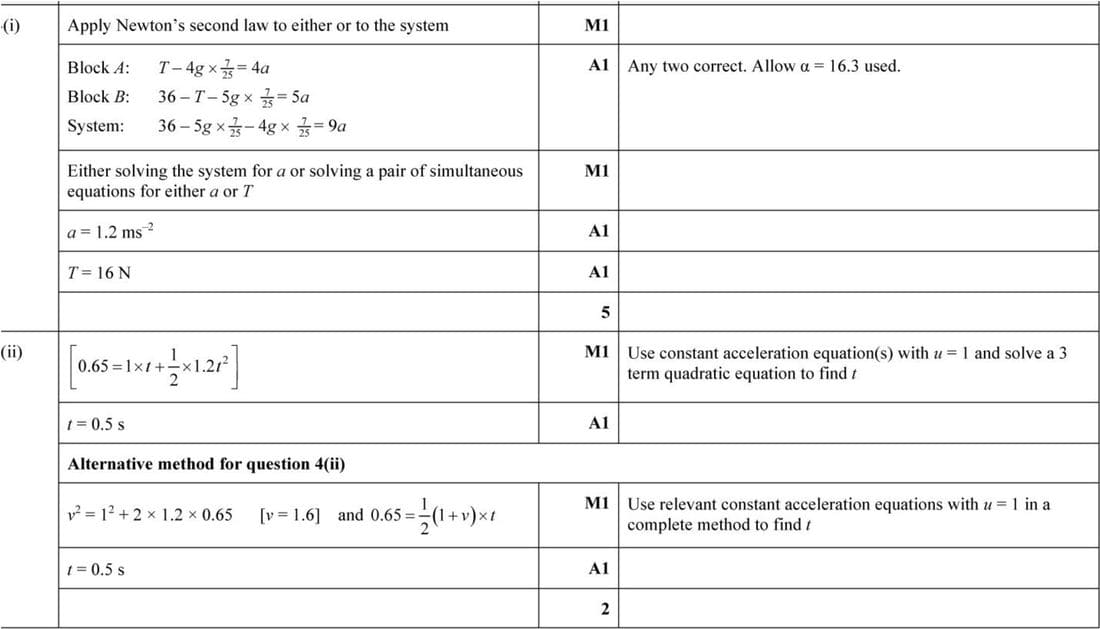

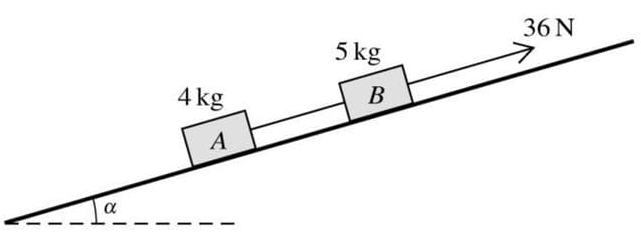

Two blocks A and B of masses 4 kg and 5 kg respectively are joined by a light inextensible string. The blocks rest on a smooth plane inclined at an angle \(\alpha\) to the horizontal, where \(\tan \alpha = \frac{7}{24}\). The string is parallel to a line of greatest slope of the plane with B above A. A force of magnitude 36 N acts on B, parallel to a line of greatest slope of the plane (see diagram).

  1. Find the acceleration of the blocks and the tension in the string. [5]
  2. At a particular instant, the speed of the blocks is 1 m s-1. Find the time, after this instant, that it takes for the blocks to travel 0.65 m. [2]
problem image 4060
Log in to record attempts.
June 2018 p41 q3
4061

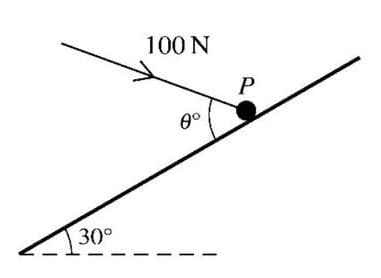

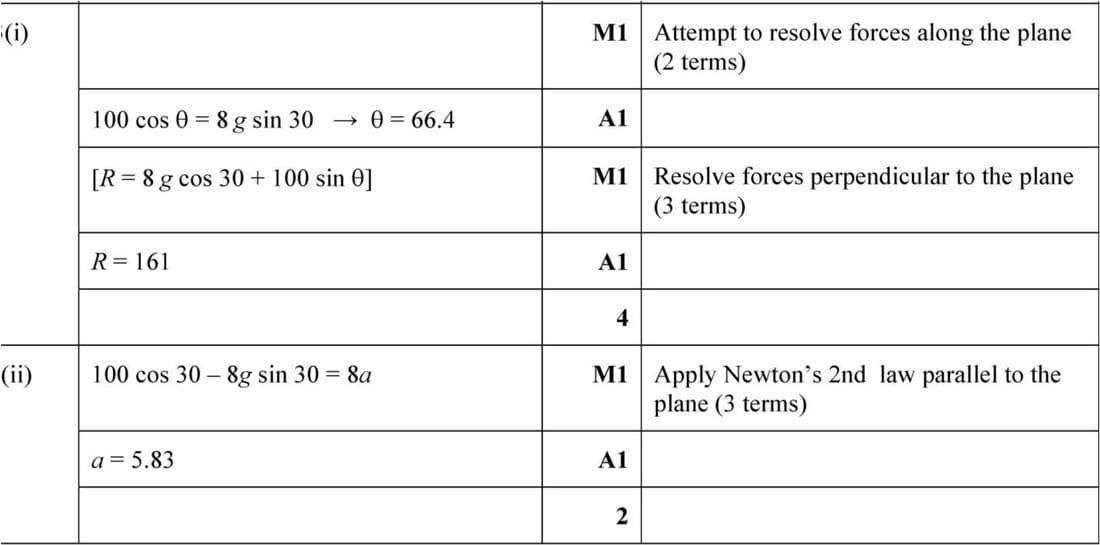

A particle P of mass 8 kg is on a smooth plane inclined at an angle of 30Β° to the horizontal. A force of magnitude 100 N, making an angle of ΞΈΒ° with a line of greatest slope and lying in the vertical plane containing the line of greatest slope, acts on P (see diagram).

(i) Given that P is in equilibrium, show that ΞΈ = 66.4, correct to 1 decimal place, and find the normal reaction between the plane and P. [4]

\((ii) Given instead that ΞΈ = 30, find the acceleration of P. [2]\)

problem image 4061
Log in to record attempts.
June 2007 p4 q1
4062

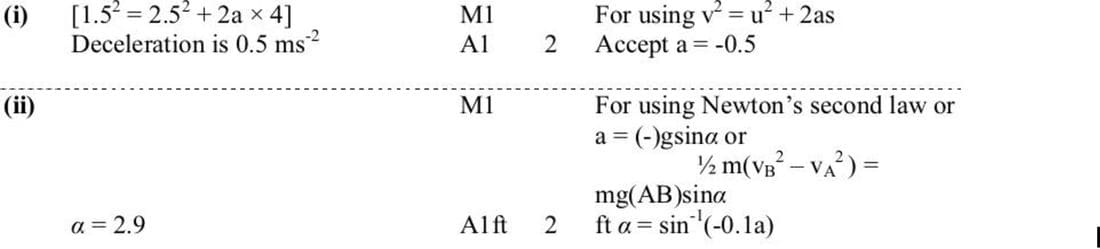

A particle slides up a line of greatest slope of a smooth plane inclined at an angle \(\alpha^\circ\) to the horizontal. The particle passes through the points \(A\) and \(B\) with speeds 2.5 m s\(^{-1}\) and 1.5 m s\(^{-1}\) respectively. The distance \(AB\) is 4 m (see diagram). Find

  1. the deceleration of the particle,
  2. the value of \(\alpha\).
problem image 4062
Log in to record attempts.
June 2006 p4 q7
4063

Two particles P and Q move on a line of greatest slope of a smooth inclined plane. The particles start at the same instant and from the same point, each with speed 1.3 m s-1. Initially P moves down the plane and Q moves up the plane. The distance between the particles t seconds after they start to move is d m.

  1. Show that d = 2.6t.

\(When t = 2.5 the difference in the vertical height of the particles is 1.6 m. Find\)

  1. the acceleration of the particles down the plane,
  2. the distance travelled by P when Q is at its highest point.
Log in to record attempts.
Nov 2011 p41 q4
4064

A, B, and C are three points on a line of greatest slope of a smooth plane inclined at an angle of \(\theta^\circ\) to the horizontal. A is higher than B and B is higher than C, and the distances AB and BC are 1.76 m and 2.16 m respectively. A particle slides down the plane with constant acceleration \(a \, \text{m s}^{-2}\). The speed of the particle at A is \(u \, \text{m s}^{-1}\) (see diagram). The particle takes 0.8 s to travel from A to B and takes 1.4 s to travel from A to C. Find

  1. the values of \(u\) and \(a\),
  2. the value of \(\theta\).
problem image 4064
Log in to record attempts.
