Feb/Mar 2016 p42 q6
3909

Two particles A and B, of masses 0.8 kg and 0.2 kg respectively, are connected by a light inextensible string. Particle A is placed on a horizontal surface. The string passes over a small smooth pulley P fixed at the edge of the surface, and B hangs freely. The horizontal section of the string, AP, is of length 2.5 m. The particles are released from rest with both sections of the string taut.

  1. Given that the surface is smooth, find the time taken for A to reach the pulley.
  2. Given instead that the surface is rough and the coefficient of friction between A and the surface is 0.1, find the speed of A immediately before it reaches the pulley.
Log in to record attempts.
June 2015 p43 q2
3910

Particles A and B, of masses 0.35 kg and 0.15 kg respectively, are attached to the ends of a light inextensible string. A is held at rest on a smooth horizontal surface with the string passing over a small smooth pulley fixed at the edge of the surface. B hangs vertically below the pulley at a distance h m above the floor (see diagram). A is released and the particles move. B reaches the floor and A subsequently reaches the pulley with a speed of 3 m s-1.

  1. Explain briefly why the speed with which B reaches the floor is 3 m s-1.
  2. Find the value of h.
problem image 3910
Log in to record attempts.

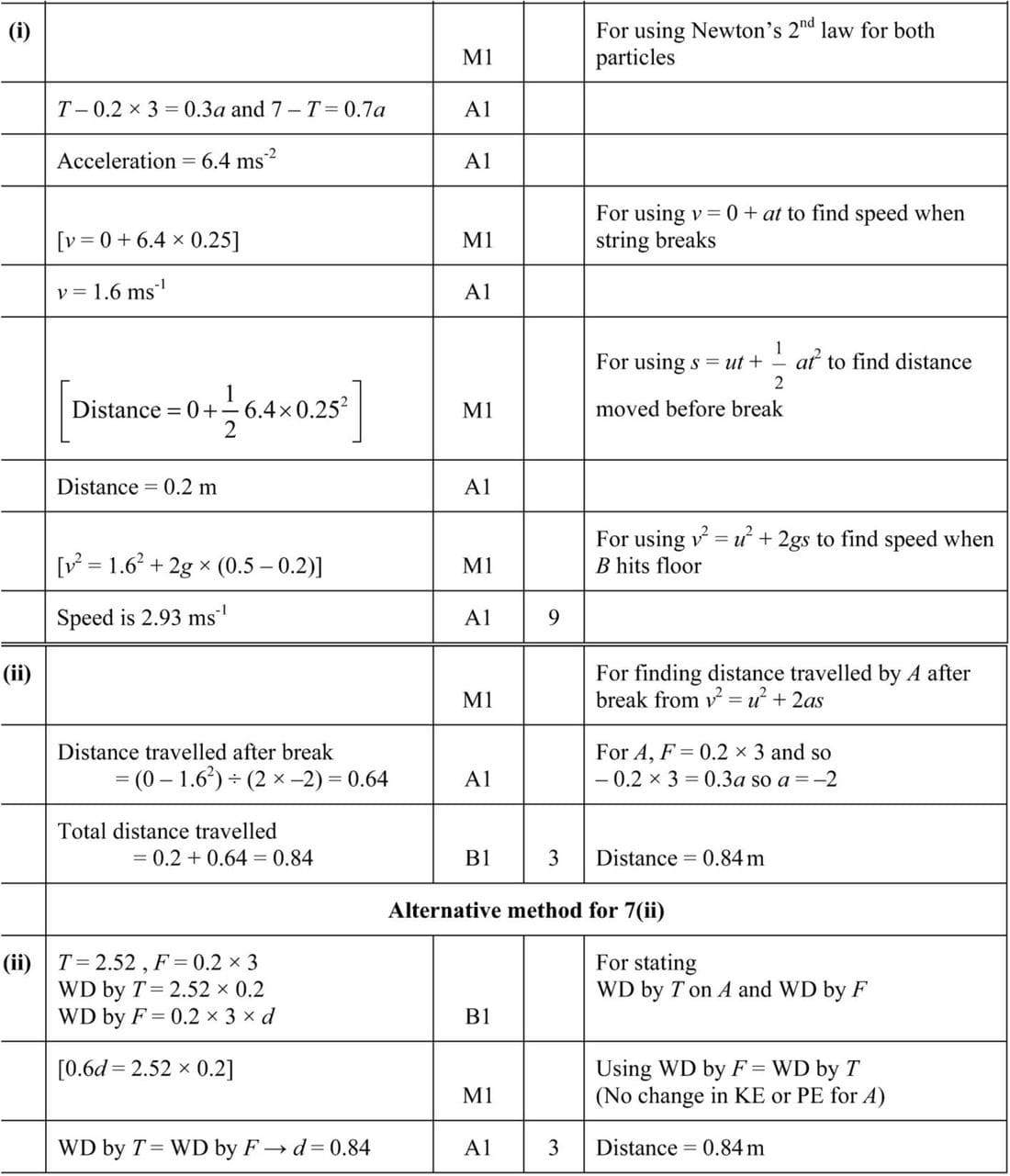

June 2015 p41 q7
3911

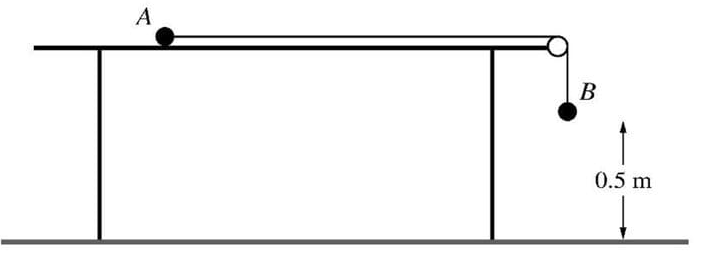

Particles A and B, of masses 0.3 kg and 0.7 kg respectively, are attached to the ends of a light inextensible string. Particle A is held at rest on a rough horizontal table with the string passing over a smooth pulley fixed at the edge of the table. The coefficient of friction between A and the table is 0.2. Particle B hangs vertically below the pulley at a height of 0.5 m above the floor (see diagram). The system is released from rest and 0.25 s later the string breaks. A does not reach the pulley in the subsequent motion. Find

  1. the speed of B immediately before it hits the floor,
  2. the total distance travelled by A.
problem image 3911
Log in to record attempts.

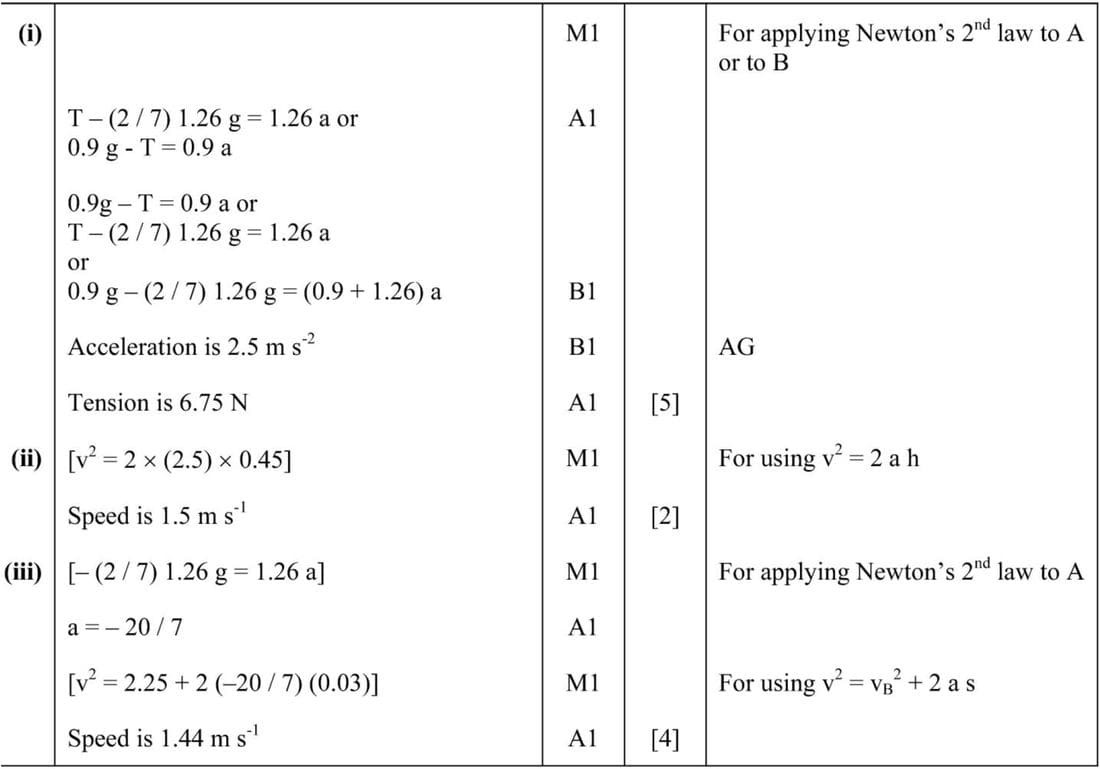

June 2013 p43 q7
3912

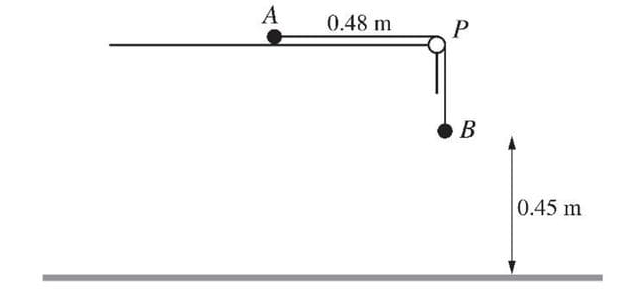

Particle A of mass 1.26 kg and particle B of mass 0.9 kg are attached to the ends of a light inextensible string. The string passes over a small smooth pulley P which is fixed at the edge of a rough horizontal table. A is held at rest at a point 0.48 m from P, and B hangs vertically below P, at a height of 0.45 m above the floor (see diagram). The coefficient of friction between A and the table is \(\frac{2}{7}\). A is released and the particles start to move.

  1. Show that the magnitude of the acceleration of the particles is 2.5 m s-2 and find the tension in the string.
  2. Find the speed with which B reaches the floor.
  3. Find the speed with which A reaches the pulley.
problem image 3912
Log in to record attempts.
Nov 2012 p43 q7
3913

Particles A and B have masses 0.32 kg and 0.48 kg respectively. The particles are attached to the ends of a light inextensible string which passes over a small smooth pulley fixed at the edge of a smooth horizontal table. Particle B is held at rest on the table at a distance of 1.4 m from the pulley. A hangs vertically below the pulley at a height of 0.98 m above the floor (see diagram). A, B, the string and the pulley are all in the same vertical plane. B is released and A moves downwards.

(i) Find the acceleration of A and the tension in the string. [5]

A hits the floor and B continues to move towards the pulley. Find the time taken, from the instant that B is released, for

(ii) A to reach the floor, [2]

(iii) B to reach the pulley. [3]

problem image 3913
Log in to record attempts.
