0606 P11 - Jun 2021 - Q10 - 11 marks
7949

In this question all lengths are in centimetres.

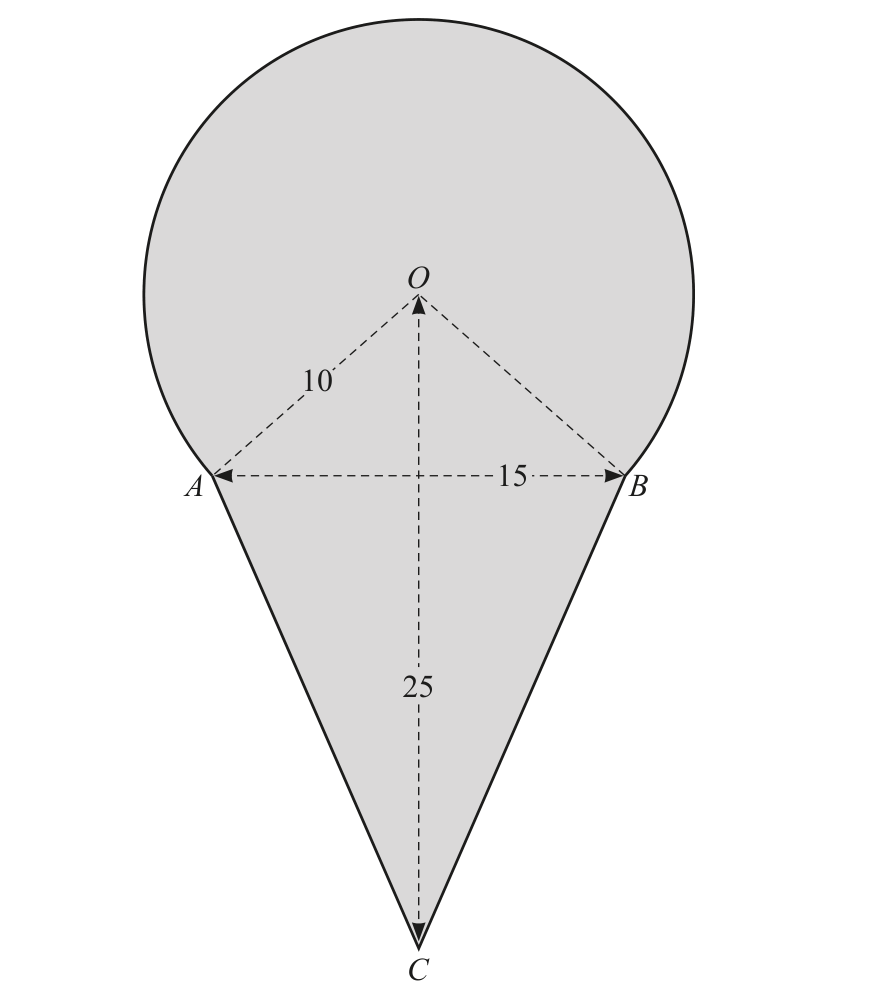

The diagram shows a shaded shape. The arc \(AB\) is the major arc of a circle, centre \(O\), radius \(10\). The line \(AB\) is of length \(15\), the line \(OC\) is of length \(25\) and the lengths of \(AC\) and \(BC\) are equal.

(a) Show that the angle \(AOB\) is \(1.70\) radians correct to 2 decimal places.

(b) Find the perimeter of the shaded shape.

(c) Find the area of the shaded shape.

0606_s21_qp_11_q10 problem diagram
