0606 P22 - Mar 2021 - Q6 - 6 marks
7933

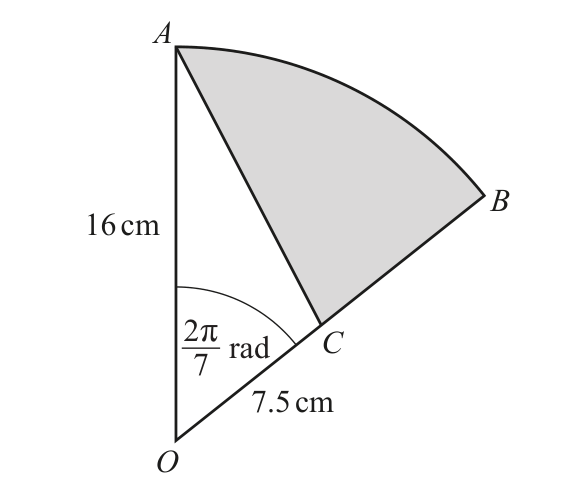

\(AOB\) is a sector of a circle with centre \(O\) and radius \(16\text{ cm}\). Angle \(AOB\) is \(\dfrac{2\pi}{7}\) radians. The point \(C\) lies on \(OB\) such that \(OC\) is \(7.5\text{ cm}\), and \(AC\) is a straight line.

(a) Find the perimeter of the shaded region.

(b) Find the area of the shaded region.

0606_m21_qp_22_q6 problem diagram
