0606 P21 - Jun 2022 - Q9 - 8 marks
7820

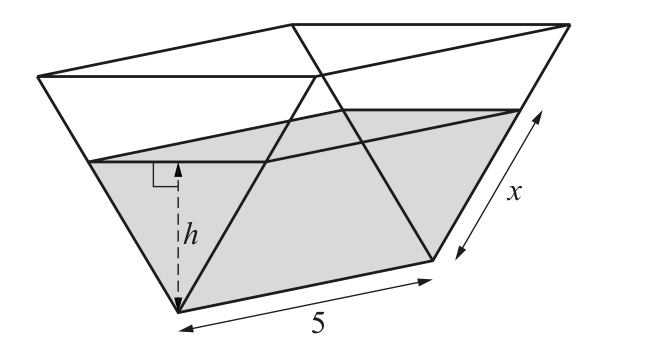

The diagram shows a container in the shape of a triangular prism. The container has length 5 m and the cross-section is an equilateral triangle. The container is being filled with water. At the instant when the depth of water is \(h\) m, the surface of the water has width \(x\) m.

(a) Show that the volume of water in the container is given by \(\displaystyle V=\frac{5\sqrt3}{3}h^2\).

(b) Water is pumped into the container at a rate of \(0.5\) m\(^3\) min\(^{-1}\). Find the rate at which the depth of the water is increasing when \(h=0.1\).

0606_s22_qp_21_q9 problem diagram
