0606 P13 - Jun 2022 - Q2 - 7 marks
7803

In this question, all lengths are in centimetres and all angles are in radians.

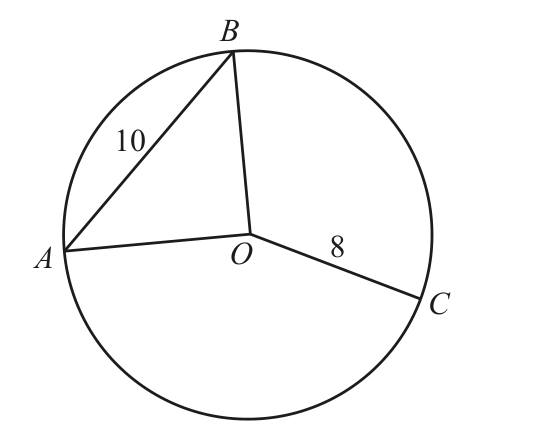

The diagram shows a circle, centre \(O\), radius \(8\). The points \(A\), \(B\) and \(C\) lie on the circumference of the circle. The chord \(AB\) has length \(10\).

(a) Show that angle \(BOA\) is \(1.35\) correct to \(2\) decimal places.

(b) Given that the minor arc \(BC\) has a length of \(18\), find angle \(BOC\).

(c) Find the area of the minor sector \(AOC\).

0606_s22_qp_13_q2 problem diagram
