0606 P22 - Mar 2022 - Q12 - 7 marks
7769
In this question all lengths are in centimetres.

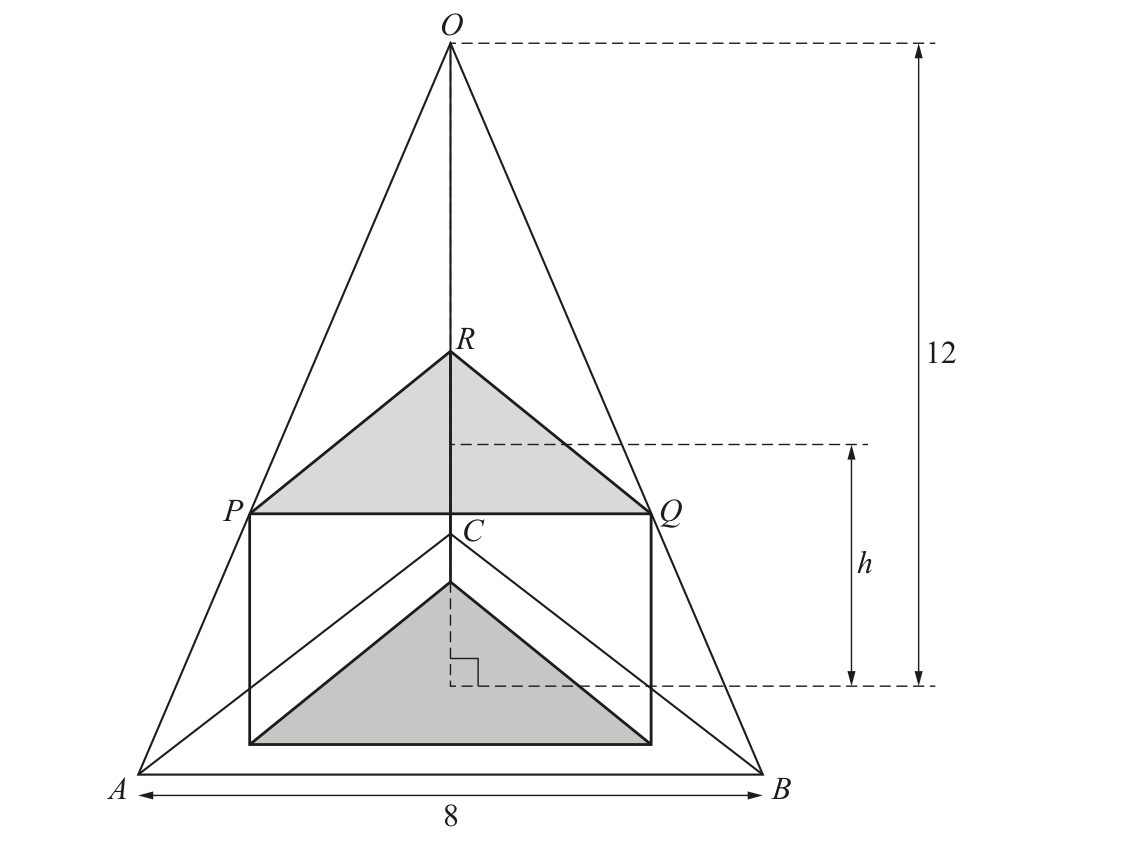

The diagram shows a right triangular prism of height \(h\) inside a right pyramid. The pyramid has a height of \(12\) and a base that is an equilateral triangle, \(ABC\), of side \(8\). The base of the prism sits on the base of the pyramid. Points \(P\), \(Q\) and \(R\) lie on the edges \(OA\), \(OB\) and \(OC\), respectively, of the pyramid \(OABC\). Pyramids \(OABC\) and \(OPQR\) are similar.
(a) Show that the volume, \(V\), of the triangular prism is given by
\(V=\frac{\sqrt3}{9}(ah^3+bh^2+ch),\)
where \(a\), \(b\) and \(c\) are integers to be found.
(b) It is given that, as \(h\) varies, \(V\) has a maximum value. Find the value of \(h\) that gives this maximum value of \(V\).
