0606 P13 - Nov 2023 - Q10 - 9 marks
7745

In this question, all lengths are in centimetres and all angles are in radians.

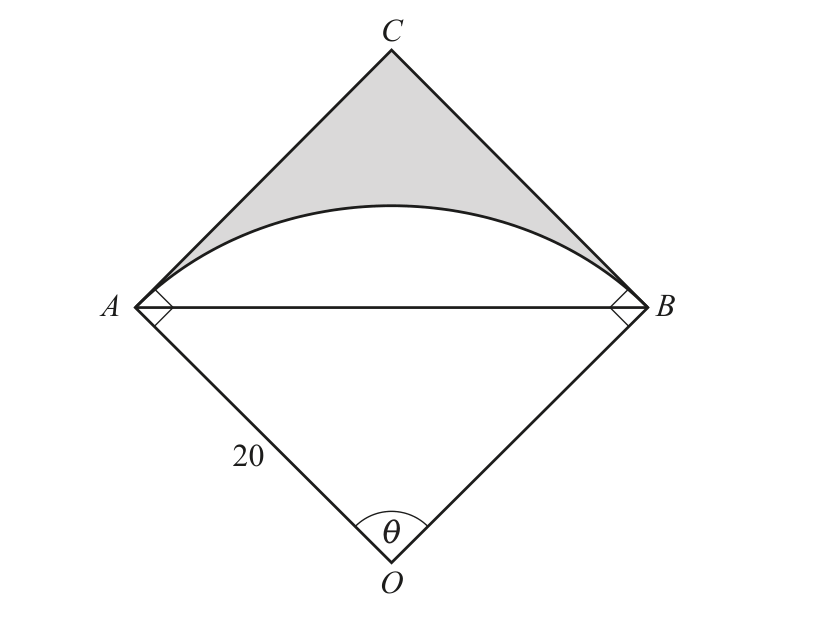

The diagram shows the sector \(OAB\) of a circle with centre \(O\) and radius \(20\). The perimeter of this sector is \(65\). The lines \(CA\) and \(CB\) are both tangents to the circle at the points \(A\) and \(B\), so that the triangle \(ABC\) is isosceles, with \(AC=CB\). The angle \(AOB\) is equal to \(\theta\).

Find the area of the shaded region.

0606_w23_qp_13_q10 problem diagram
