0606 P12 - Jun 2023 - Q4 - 7 marks
7666

In this question all lengths are in centimetres and all angles are in radians.

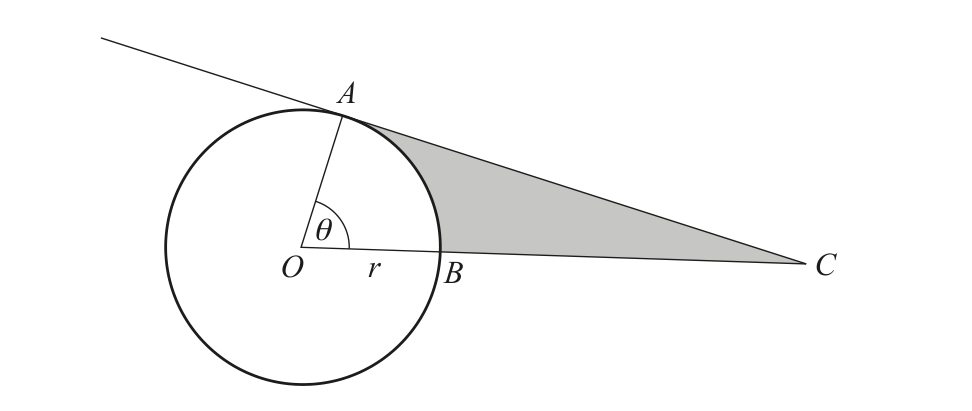

The diagram shows a circle with centre \(O\) and radius \(r\). The points \(A\) and \(B\) lie on the circumference of the circle such that the angle \(AOB\) is \(\theta\) and the length of the minor arc \(AB\) is 12. The area of the minor sector \(AOB\) is \(57.6\text{ cm}^2\). The point \(C\) lies on the tangent to the circle at \(A\) such that \(OBC\) is a straight line.

(a) Find the values of \(r\) and \(\theta\).

(b) Find the area of the shaded region. Give your answer correct to 1 decimal place.

0606_s23_qp_12_q4 problem diagram
