9231 P32 - Nov 2021 - Q3 - 6 marks
6998

Particles \(A\) and \(B\), of masses \(m\) and \(3 m\) respectively, are connected by a light inextensible string of length \(a\) that passes through a fixed smooth ring \(R\). Particle \(B\) hangs in equilibrium vertically below the ring. Particle \(A\) moves in horizontal circles with speed \(v\). Particles \(A\) and \(B\) are at the same horizontal level. The angle between \(A R\) and \(B R\) is \(\theta\) (see diagram).
(a) Show that \(\cos \theta=\frac{1}{3}\).

(b) Find an expression for \(v\) in terms of \(a\) and \(g\).

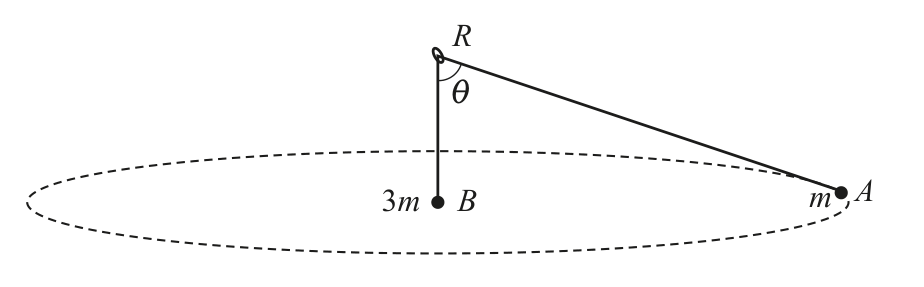

9231_w21_qp_32_q3 diagram
