9231 P32 - Nov 2023 - Q5 - 8 marks
6930

A bead of mass \(m\) moves on a smooth circular wire, with centre \(O\) and radius \(a\), in a vertical plane. The bead has speed \(v_A\) when it is at the point \(A\), where \(OA\) makes an angle \(\alpha\) with the downward vertical through \(O\), and \(\cos\alpha=\dfrac35\).

Subsequently, the bead has speed \(v_B\) at the point \(B\), where \(OB\) makes an angle \(\theta\) with the upward vertical through \(O\). Angle \(AOB\) is a right angle.

The reaction of the wire on the bead at \(B\) is in the direction \(OB\) and has magnitude equal to \(\dfrac16\) of the magnitude of the reaction when the bead is at \(A\).

(a) Find, in terms of \(m\) and \(g\), the magnitude of the reaction at \(B\).

(b) Given that \(v_A=\sqrt{kag}\), find the value of \(k\).

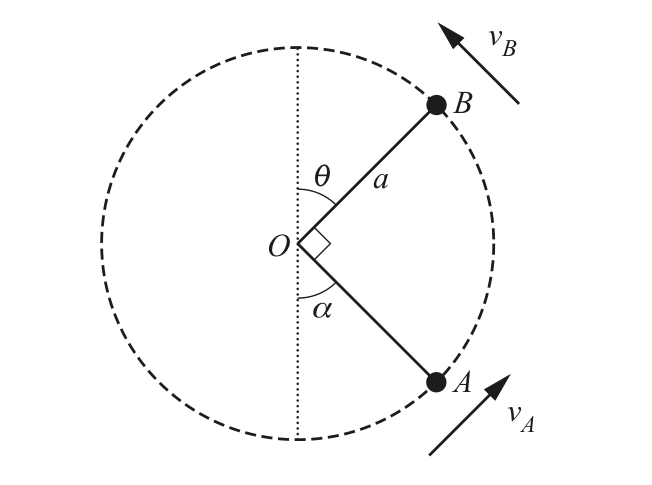

9231_w23_qp_32_q5 diagram
