9231 P33 - Jun 2024 - Q5 - 7 marks
6917

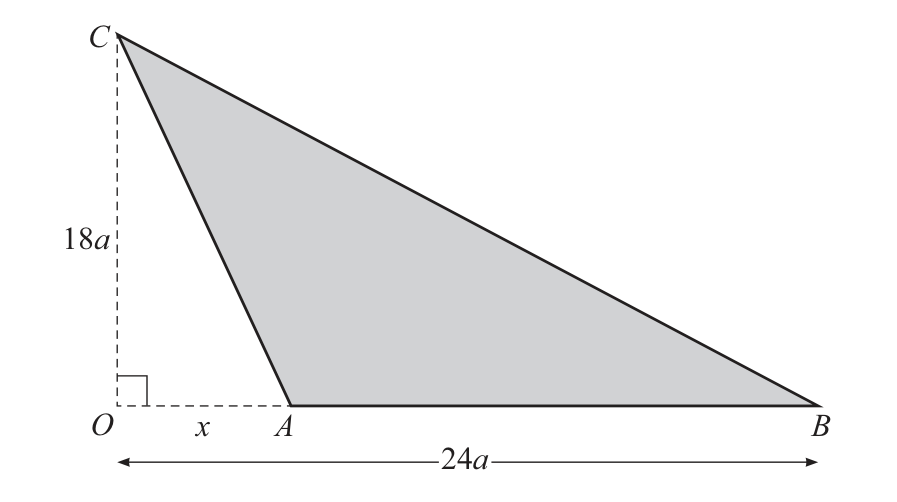

A uniform lamina is in the form of a triangle \(OBC\), with \(OC=18a\), \(OB=24a\), and \(\angle COB=90^\circ\). The point \(A\) on \(OB\) is such that \(OA=x\). The triangle \(OAC\) is removed from the lamina.

(a) Find, in terms of \(a\) and \(x\), the distance of the centre of mass of the remaining object \(ABC\) from \(OC\).

The object \(ABC\) is suspended from \(C\). In its equilibrium position, the side \(AB\) makes an angle \(\theta\) with the vertical, where \(\tan\theta=\dfrac65\).

(b) Find \(x\) in terms of \(a\).

9231_s24_qp_33_q5 diagram
