9231 P33 - Jun 2025 - Q5 - 8 marks
6868

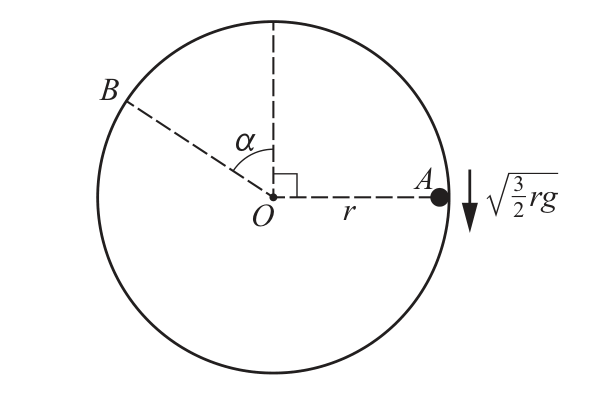

A hollow cylinder of radius \(r\) is fixed with its axis horizontal. Points \(A\), \(B\), and \(O\) lie in the same vertical plane, with \(A\) and \(B\) on the smooth inner surface and \(O\) on the axis. The particle is projected vertically downwards from \(A\) with speed \(\sqrt{\frac32rg}\). It moves inside the cylinder and loses contact at \(B\).

(a) Find \(\alpha\).

(b) In the subsequent motion, find the greatest height above \(O\) reached by the particle, in terms of \(r\).

9231_s25_qp_33_q5 question image for diagram
Solutions and mark schemes for 9231 are temporarily available to admins only.
