9231 P31 - Jun 2025 - Q4 - 7 marks
6860

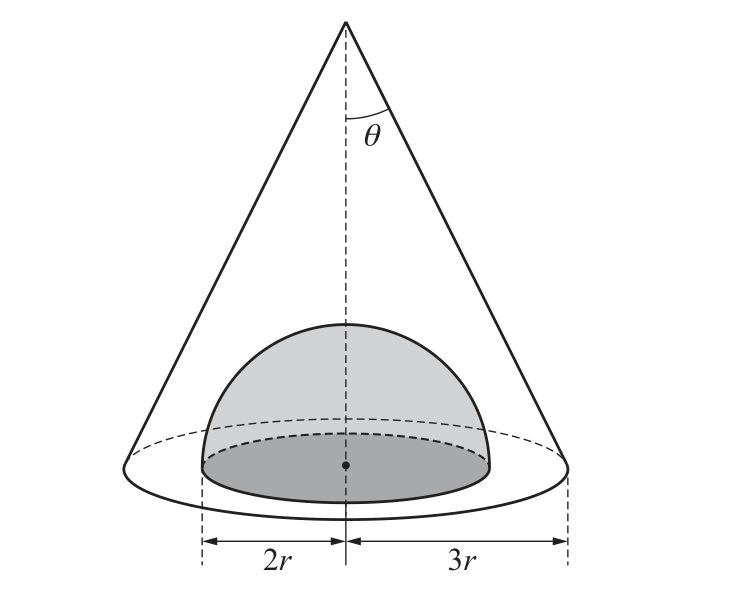

An object is formed by removing a solid hemisphere of radius \(2r\) from a uniform solid cone of radius \(3r\) and semi-vertical angle \(\theta\), where \(\tan\theta=\frac12\). The axes of symmetry coincide, and the cone and hemisphere have their bases in the same plane.

(a) Find, in terms of \(r\), the distance of the centre of mass of the object from its base.

(b) The object is placed with its circular base on a rough plane inclined at angle \(\alpha\). The object is on the point of toppling. Find \(\alpha\).

9231_s25_qp_31_q4 question image for diagram
