9231 P31 - Jun 2025 - Q3 - 7 marks
6859

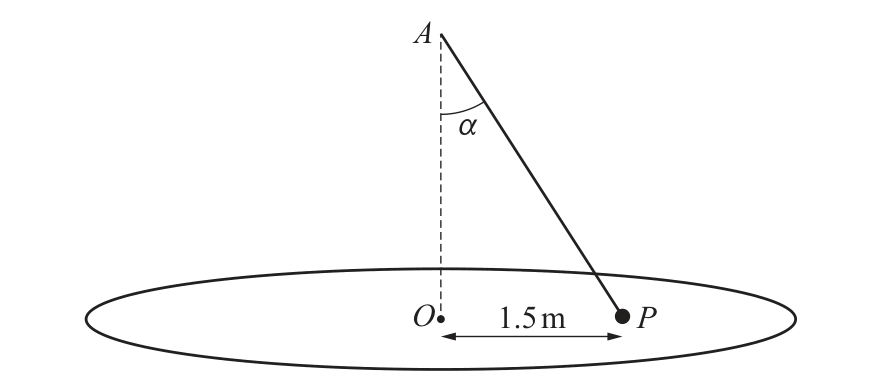

A rough horizontal disc rotates with constant angular speed \(\omega\,\text{rad s}^{-1}\). A particle \(P\) of mass \(1.6\) kg is at distance \(1.5\) m from the centre \(O\), attached to a point \(A\) vertically above \(O\) by a light elastic string. The natural length is \(2\) m, the modulus of elasticity is \(32\) N, and the coefficient of friction is \(0.5\). The particle is on the point of slipping in the direction \(OP\).

(a) Given that the tension is \(8\) N, show that \(\sin\alpha=0.6\).

(b) Find the number of revolutions per minute made by the disc and the particle.

9231_s25_qp_31_q3 question image for diagram
Solutions and mark schemes for 9231 are temporarily available to admins only.
