Nov 2022 p13 q5
663

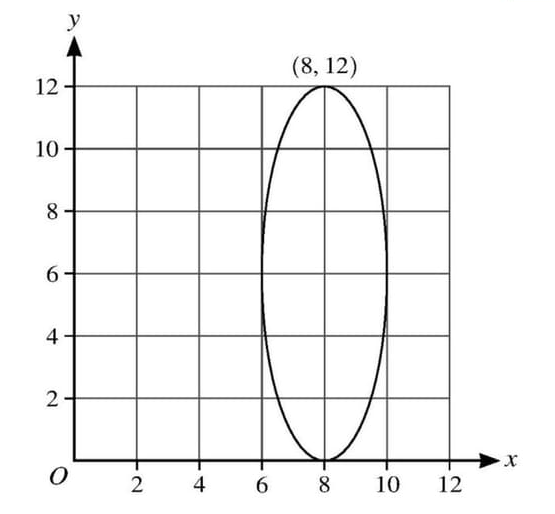

The diagram shows a curve which has a maximum point at (8, 12) and a minimum point at (8, 0). The curve is the result of applying a combination of two transformations to a circle. The first transformation applied is a translation of \(\begin{pmatrix} 7 \\ -3 \end{pmatrix}\). The second transformation applied is a stretch in the y-direction.
(a) State the scale factor of the stretch.
(b) State the radius of the original circle.
(c) State the coordinates of the centre of the circle after the translation has been completed but before the stretch is applied.
(d) State the coordinates of the centre of the original circle.

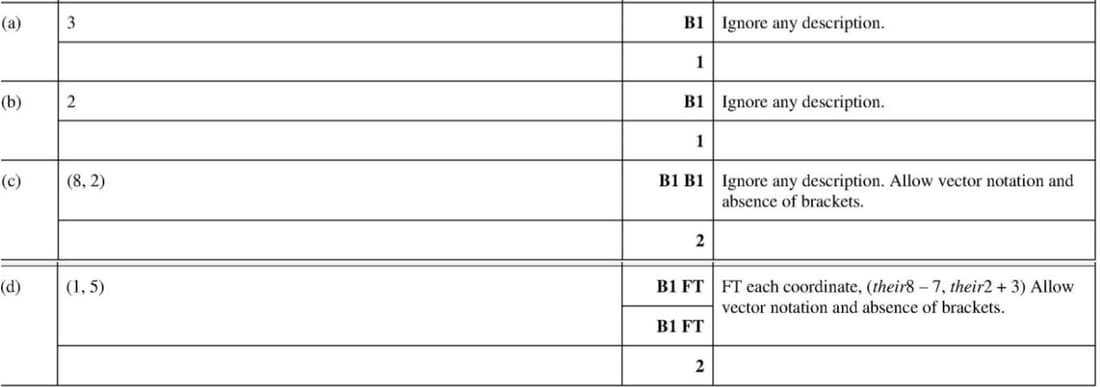

Solution
(a) The stretch in the y-direction changes the distance from the center to the maximum point from 2 to 6 (since the maximum point is at 12 and the minimum at 0, the center is at 6). Therefore, the scale factor of the stretch is \(\frac{6}{2} = 3\).
(b) The radius of the original circle is the distance from the center to the maximum point before the stretch, which is 2.
(c) After the translation \(\begin{pmatrix} 7 \\ -3 \end{pmatrix}\), the center of the circle moves from (1, 5) to \((1+7, 5-3) = (8, 2)\).
(d) The original center of the circle is found by reversing the translation from (8, 2): \((8-7, 2+3) = (1, 5)\).
