9231 P23 - Jun 2017 - Q4 - 10 marks
6155

A uniform rod \(A B\) of length \(3 a\) and weight \(W\) is freely hinged to a fixed point at the end \(A\). The end \(B\) is below the level of \(A\) and is attached to one end of a light elastic string of natural length \(4 a\). The other end of the string is attached to a point \(O\) on a vertical wall. The horizontal distance between \(A\) and the wall is \(5 a\). The string and the rod make angles \(\theta\) and \(2 \theta\) respectively with the horizontal (see diagram). The system is in equilibrium with the rod and the string in the same vertical plane. It is given that \(\sin \theta=\frac{3}{5}\) and you may use the fact that \(\cos 2 \theta=\frac{7}{25}\).

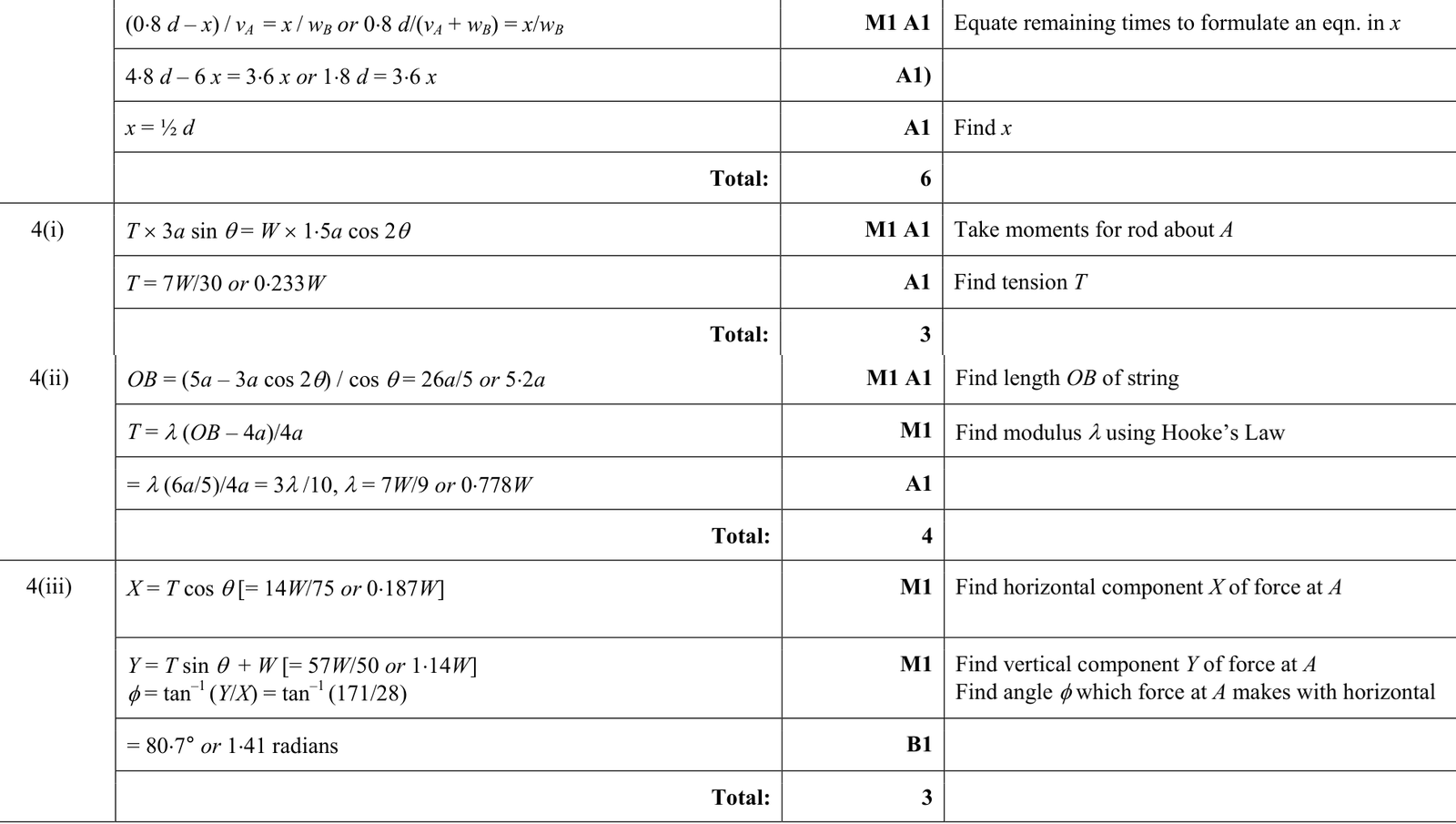

(i) Find the tension in the string in terms of \(W\).

(ii) Find the modulus of elasticity of the string in terms of \(W\).

(iii) Find the angle that the force acting on the \(\operatorname{rod}\) at \(A\) makes with the horizontal.
