9231 P11 - Nov 2020 - Q7 - 17 marks
5807
7 (a) Show that the curve with Cartesian equation \(\left(x^{2}+y^{2}\right)^{\frac{5}{2}}=4 x y\left(x^{2}-y^{2}\right)\) has polar equation \(r=\sin 4 \theta\).
The curve \(C\) has polar equation \(r=\sin 4 \theta\), for \(0 \leqslant \theta \leqslant \frac{1}{4} \pi\). (b) Sketch \(C\) and state the equation of the line of symmetry.
(c) Find the exact value of the area of the region enclosed by \(C\).
(d) Using the identity \(\sin 4 \theta \equiv 4 \sin \theta \cos ^{3} \theta-4 \sin ^{3} \theta \cos \theta\), find the maximum distance of \(C\) from the line \(\theta=\frac{1}{2} \pi\). Give your answer correct to 2 decimal places.
Solution
Checked by expert

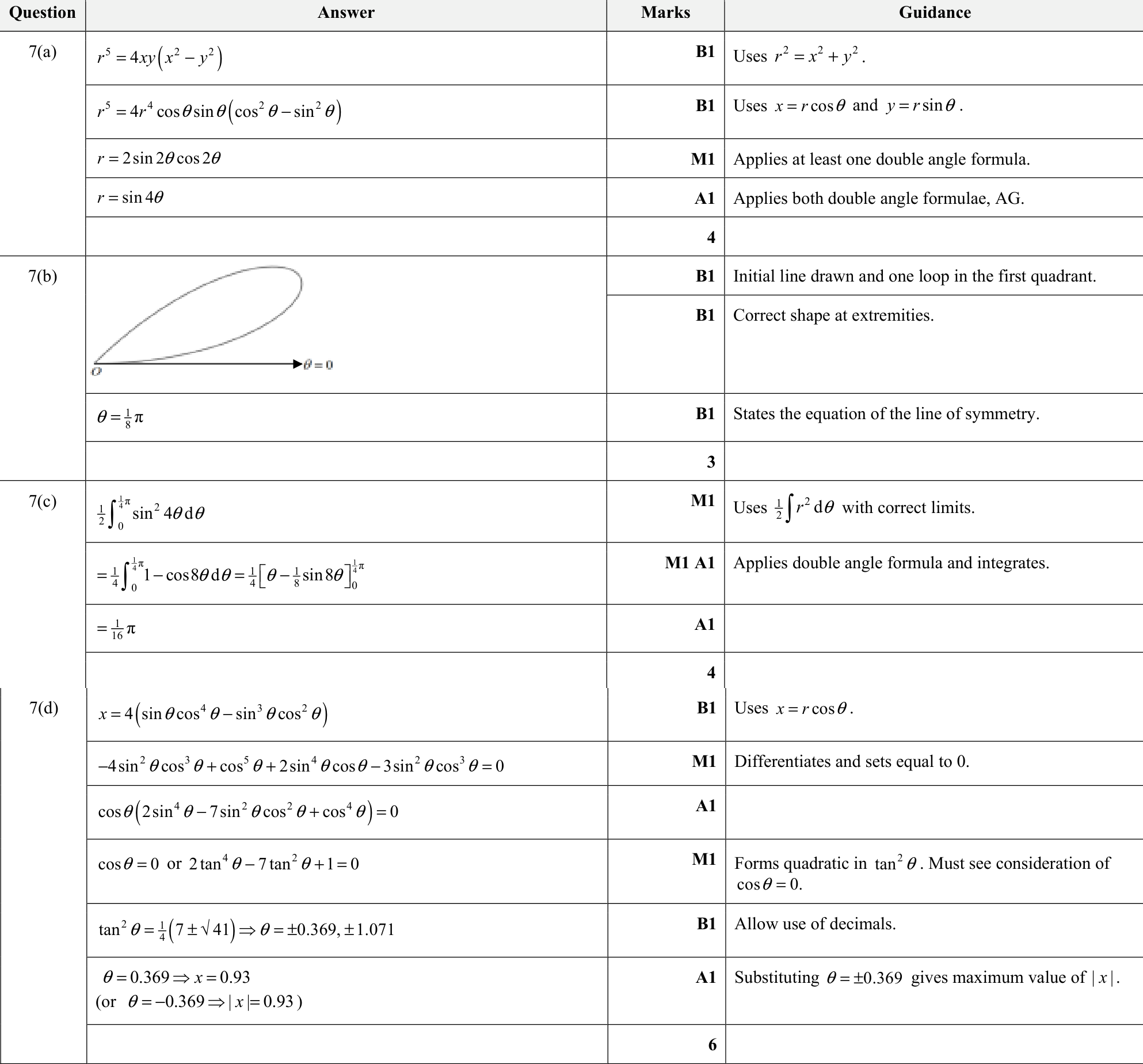

Answer:
The polar equation is \(r=\sin 4\theta\).
The curve is a single loop in the first quadrant, starting and ending at the origin. Its line of symmetry is \(\theta=\frac{\pi}{8}\).
The area enclosed by \(C\) is \(\frac{\pi}{16}\).
The maximum distance from the line \(\theta=\frac{\pi}{2}\) is \(0.93\) to 2 decimal places.
Use \(x=r\cos\theta\), \(y=r\sin\theta\) and \(x^2+y^2=r^2\).
Using \(2\sin\theta\cos\theta=\sin2\theta\) and \(\cos^2\theta-\sin^2\theta=\cos2\theta\),
\(r=2\sin2\theta\cos2\theta=\sin4\theta\).
Thus the polar equation is \(r=\sin4\theta\).
For \(0\leq\theta\leq\frac{\pi}{4}\), \(r=\sin4\theta\geq0\). Also \(r=0\) at \(\theta=0\) and \(\theta=\frac{\pi}{4}\), and \(r\) is greatest when \(4\theta=\frac{\pi}{2}\), i.e. \(\theta=\frac{\pi}{8}\).
So \(C\) is one loop in the first quadrant, starting at the origin on the initial line, reaching its furthest point on \(\theta=\frac{\pi}{8}\), and returning to the origin on \(\theta=\frac{\pi}{4}\).
The line of symmetry is \(\theta=\frac{\pi}{8}\).
The area enclosed by a polar curve is
\(A=\frac12\int_\alpha^\beta r^2\,d\theta\).
Here \(r=\sin4\theta\), with \(0\leq\theta\leq\frac{\pi}{4}\), so
