Problem 523
523

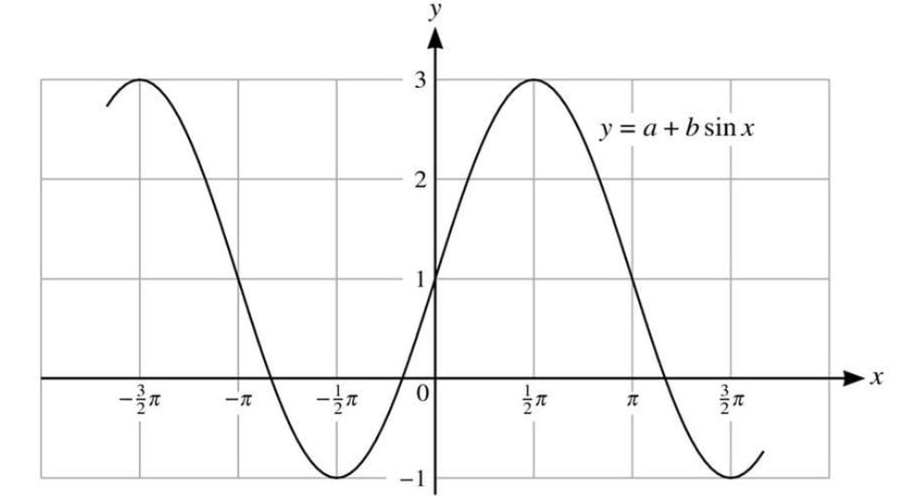

The diagram shows part of the graph of \(y = a + b \sin x\). State the values of the constants \(a\) and \(b\).
Solution
The graph of \(y = a + b \sin x\) is a vertically shifted sine wave.
The midline of the sine wave is at \(y = 1\), which indicates that \(a = 1\).
The amplitude of the sine wave is the distance from the midline to the maximum or minimum point. The maximum value is \(3\) and the minimum value is \(-1\), so the amplitude is \(\frac{3 - 1}{2} = 2\).
