A small ring of weight 12 N is threaded on a fixed rough horizontal rod. A light string is attached to the ring and the string is pulled with a force of 15 N at an angle of 30° to the horizontal.

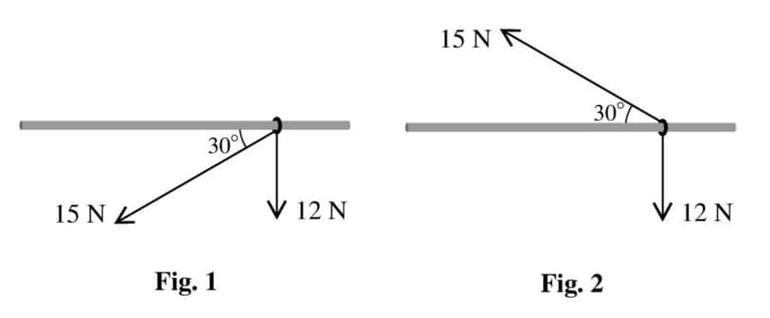

(i) When the angle of 30° is below the horizontal (see Fig. 1), the ring is in limiting equilibrium. Show that the coefficient of friction between the ring and the rod is 0.666, correct to 3 significant figures.

(ii) When the angle of 30° is above the horizontal (see Fig. 2), the ring is moving with acceleration a m s⁻². Find the value of a.
