9709 P41 - Jun 2020 - Q4
4089

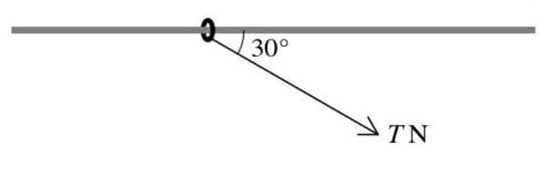

The diagram shows a ring of mass 0.1 kg threaded on a fixed horizontal rod. The rod is rough and the coefficient of friction between the ring and the rod is 0.8. A force of magnitude \(T \text{ N}\) acts on the ring in a direction at \(30^\circ\) to the rod, downwards in the vertical plane containing the rod. Initially the ring is at rest.

(a) Find the greatest value of \(T\) for which the ring remains at rest. [4]

(b) Find the acceleration of the ring when \(T = 3\). [3]

problem image 4089
