9709 P41 - Nov 2011 - Q4
4064

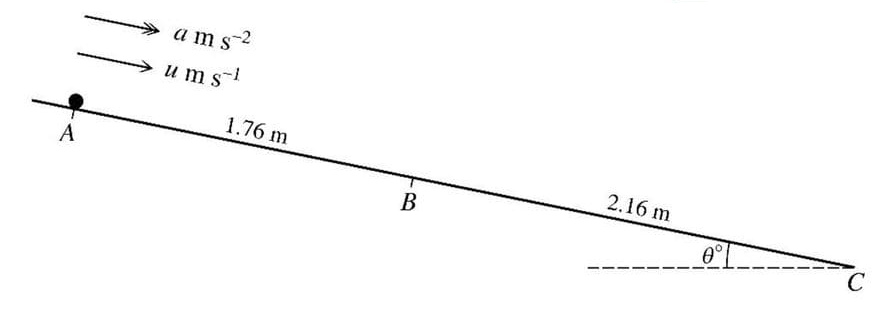

A, B, and C are three points on a line of greatest slope of a smooth plane inclined at an angle of \(\theta^\circ\) to the horizontal. A is higher than B and B is higher than C, and the distances AB and BC are 1.76 m and 2.16 m respectively. A particle slides down the plane with constant acceleration \(a \, \text{m s}^{-2}\). The speed of the particle at A is \(u \, \text{m s}^{-1}\) (see diagram). The particle takes 0.8 s to travel from A to B and takes 1.4 s to travel from A to C. Find

  1. the values of \(u\) and \(a\),
  2. the value of \(\theta\).
problem image 4064
Solutions locked. Please sign in with access to view them.
