9709 P41 - Nov 2020 - Q7
4045

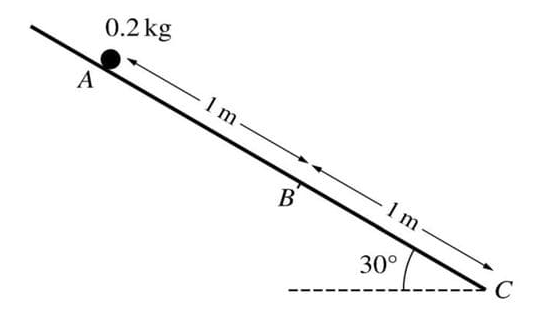

Three points A, B and C lie on a line of greatest slope of a plane inclined at an angle of 30° to the horizontal, with AB = 1 m and BC = 1 m, as shown in the diagram. A particle of mass 0.2 kg is released from rest at A and slides down the plane. The part of the plane from A to B is smooth. The part of the plane from B to C is rough, with coefficient of friction μ between the plane and the particle.
\((a) Given that μ = \frac{1}{2}\sqrt{3}, find the speed of the particle at C.\)
(b) Given instead that the particle comes to rest at C, find the exact value of μ.
Solutions locked. Please sign in with access to view them.
