June 2021 p43 q7
4035

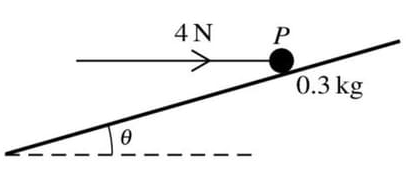

A particle P of mass 0.3 kg rests on a rough plane inclined at an angle \(\theta\) to the horizontal, where \(\sin \theta = \frac{7}{25}\). A horizontal force of magnitude 4 N, acting in the vertical plane containing a line of greatest slope of the plane, is applied to P (see diagram). The particle is on the point of sliding up the plane.

(a) Show that the coefficient of friction between the particle and the plane is \(\frac{3}{4}\).

The force acting horizontally is replaced by a force of magnitude 4 N acting up the plane parallel to a line of greatest slope.

(b) Find the acceleration of P.

(c) Starting with P at rest, the force of 4 N parallel to the plane acts for 3 seconds and is then removed. Find the total distance travelled until P comes to instantaneous rest.

problem image 4035
