Nov 2022 p41 q4
4034

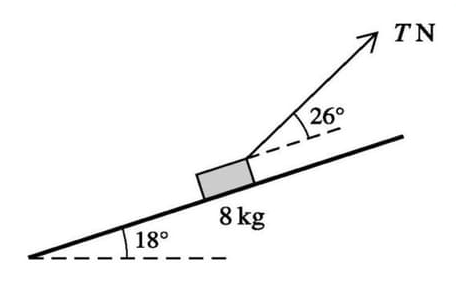

A block of mass 8 kg is placed on a rough plane which is inclined at an angle of 18° to the horizontal. The block is pulled up the plane by a light string that makes an angle of 26° above a line of greatest slope. The tension in the string is \(T\) N (see diagram). The coefficient of friction between the block and plane is 0.65.

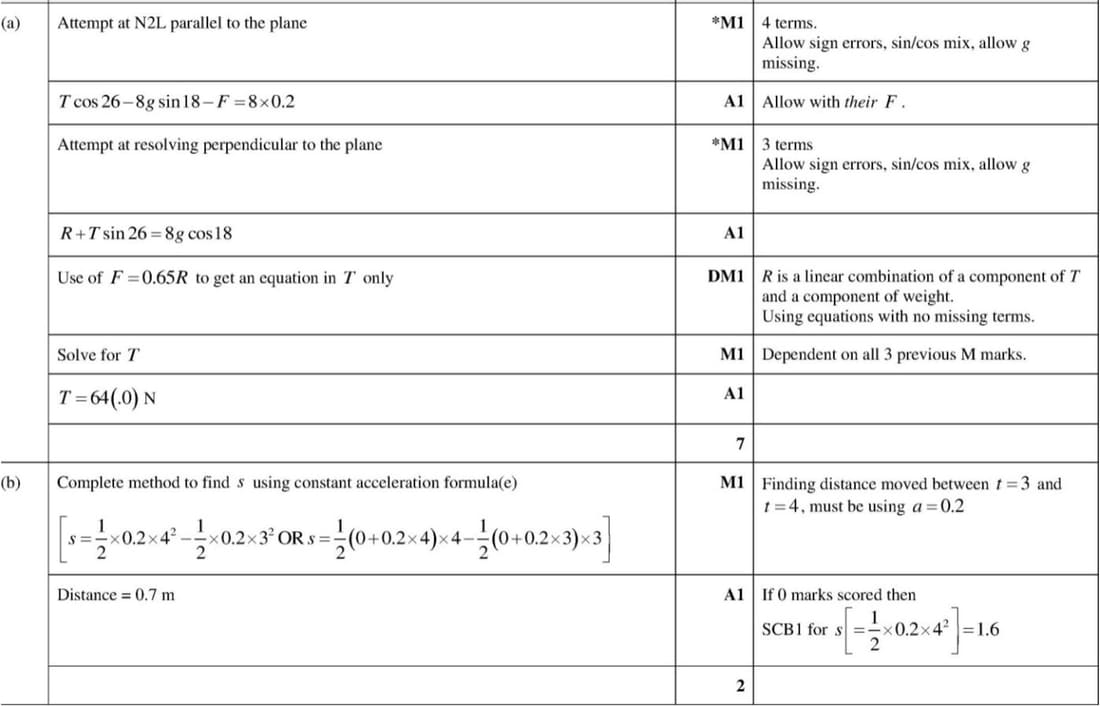

(a) The acceleration of the block is 0.2 m/s². Find \(T\).

(b) The block is initially at rest. Find the distance travelled by the block during the fourth second of motion.

problem image 4034
