June 2018 p43 q5
4017
A particle of mass 3 kg is on a rough plane inclined at an angle of 20° to the horizontal. A force of magnitude \(P N\) acting parallel to a line of greatest slope of the plane is used to keep the particle in equilibrium. The coefficient of friction between the particle and the plane is 0.35. Show that the least possible value of \(P\) is 0.394, correct to 3 significant figures, and find the greatest possible value of \(P\).

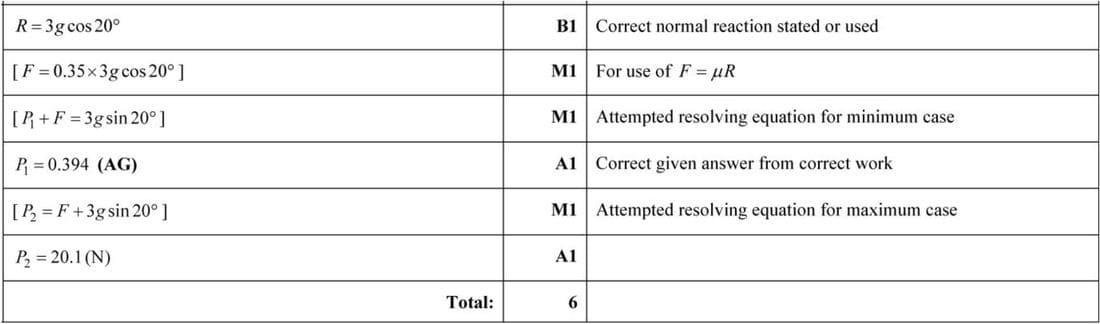

Solution
First, calculate the normal reaction \(R\) on the particle:
\(R = 3g \cos 20^{\circ}\)
Next, calculate the frictional force \(F\) using the coefficient of friction \(\mu = 0.35\):
\(F = 0.35 \times 3g \cos 20^{\circ}\)
For the least possible value of \(P\), resolve forces parallel to the plane:
\(P_1 + F = 3g \sin 20^{\circ}\)
Solving for \(P_1\):
\(P_1 = 3g \sin 20^{\circ} - F\)
Substitute the values to find \(P_1 = 0.394\) (as given).
For the greatest possible value of \(P\), resolve forces in the opposite direction:
\(P_2 = F + 3g \sin 20^{\circ}\)
Substitute the values to find \(P_2 = 20.1 \text{ N}\).
