9709 P42 - Jun 2020 - Q3
4015

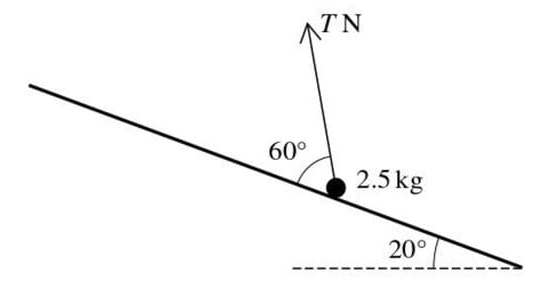

A particle of mass 2.5 kg is held in equilibrium on a rough plane inclined at 20° to the horizontal by a force of magnitude \(T\) N making an angle of 60° with a line of greatest slope of the plane (see diagram). The coefficient of friction between the particle and the plane is 0.3.
Find the greatest and least possible values of \(T\).
Solutions locked. Please sign in with access to view them.
