Nov 2016 p42 q5
4000
A particle of mass m kg is resting on a rough plane inclined at 30° to the horizontal. A force of magnitude 10 N applied to the particle up a line of greatest slope of the plane is just sufficient to stop the particle sliding down the plane. When a force of 75 N is applied to the particle up a line of greatest slope of the plane, the particle is on the point of sliding up the plane. Find m and the coefficient of friction between the particle and the plane.

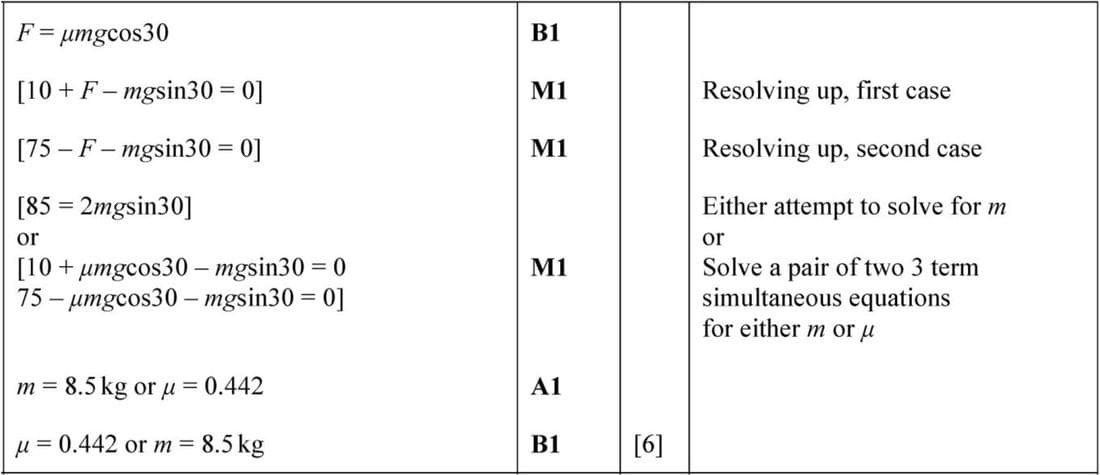

Solution
First, consider the forces acting on the particle. The gravitational force component down the slope is \(mg \sin 30^{\circ}\), and the normal force is \(mg \cos 30^{\circ}\). The frictional force \(F\) is \(\mu mg \cos 30^{\circ}\).
For the first scenario, where a 10 N force is applied to stop the particle from sliding down:
\(10 + F = mg \sin 30^{\circ}\)
For the second scenario, where a 75 N force is applied and the particle is on the point of sliding up:
