Feb/Mar 2021 p42 q5
3984

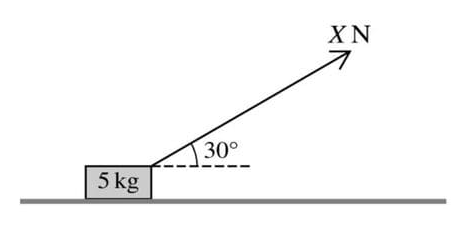

A block of mass 5 kg is being pulled along a rough horizontal floor by a force of magnitude X N acting at 30° above the horizontal (see diagram). The block starts from rest and travels 2 m in the first 5 s of its motion.

(a) Find the acceleration of the block. [2]

(b) Given that the coefficient of friction between the block and the floor is 0.4, find X. [4]

The block is now placed on a part of the floor where the coefficient of friction between the block and the floor has a different value. The value of X is changed to 25, and the block is now in limiting equilibrium.

(c) Find the value of the coefficient of friction between the block and this part of the floor. [3]

problem image 3984
