9709 P42 - Jun 2013 - Q1
3976

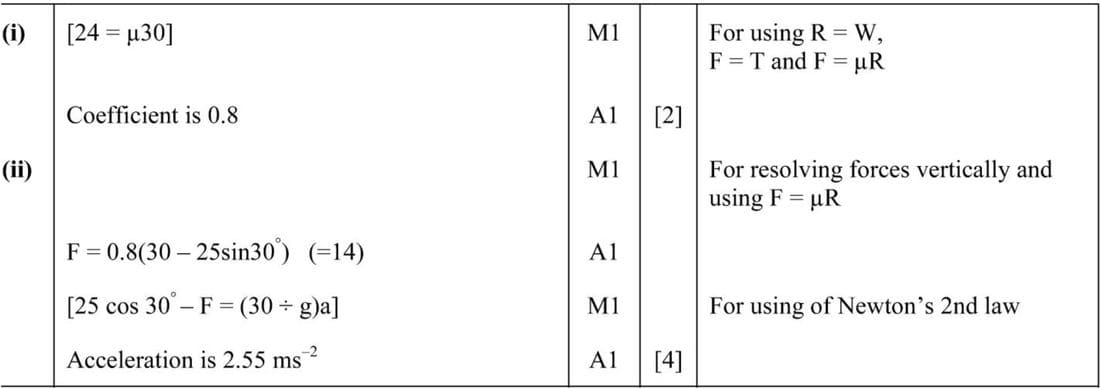

A string is attached to a block of weight 30 N, which is in contact with a rough horizontal plane. When the string is horizontal and the tension in it is 24 N, the block is in limiting equilibrium.
(i) Find the coefficient of friction between the block and the plane.
The block is now in motion and the string is at an angle of 30° upwards from the plane. The tension in the string is 25 N.
(ii) Find the acceleration of the block.
