9709 P41 - Nov 2013 - Q4
3974
Particles P and Q are moving in a straight line on a rough horizontal plane. The frictional forces are the only horizontal forces acting on the particles.

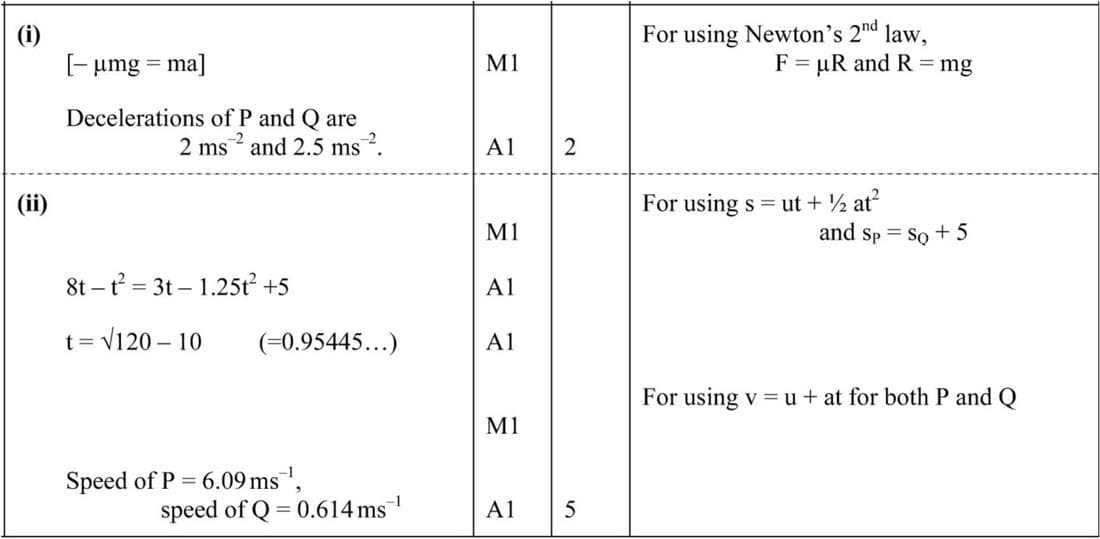

- Find the deceleration of each of the particles given that the coefficient of friction between P and the plane is 0.2, and between Q and the plane is 0.25.
At a certain instant, P passes through the point A and Q passes through the point B. The distance AB is 5 m. The velocities of P and Q at A and B are 8 m s-1 and 3 m s-1, respectively, both in the direction of AB.
- Find the speeds of P and Q immediately before they collide.
