June 2014 p43 q1
3967
A block B of mass 7 kg is at rest on rough horizontal ground. A force of magnitude X N acts on B at an angle of 15° to the upward vertical (see diagram).
(i) Given that B is in equilibrium find, in terms of X, the normal component of the force exerted on B by the ground. [2]
(ii) The coefficient of friction between B and the ground is 0.4. Find the value of X for which B is in limiting equilibrium. [3]

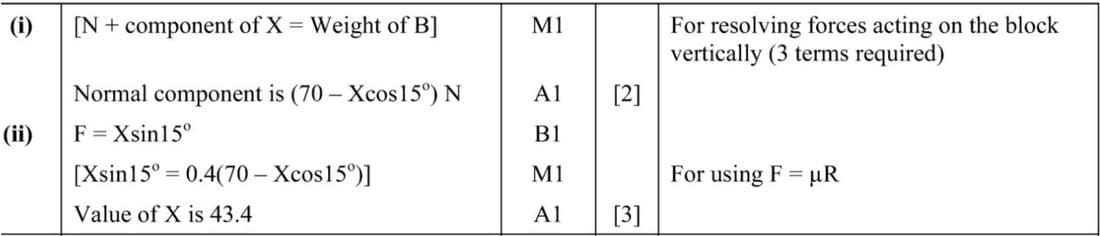

Solution
(i) To find the normal component of the force exerted on B by the ground, resolve the forces vertically. The weight of the block is \(7 \times 10 = 70\) N. The vertical component of the force \(X\) is \(X \cos 15^{\circ}\). In equilibrium, the normal force \(N\) plus the vertical component of \(X\) equals the weight of the block:
\(N + X \cos 15^{\circ} = 70\)
Thus, the normal component is:
\(N = 70 - X \cos 15^{\circ}\)
(ii) For limiting equilibrium, the frictional force \(F\) is equal to the maximum friction \(\mu N\), where \(\mu = 0.4\). The horizontal component of the force \(X\) is \(X \sin 15^{\circ}\). Therefore:
\(X \sin 15^{\circ} = 0.4 (70 - X \cos 15^{\circ})\)
