9709 P4 - Jun 2009 - Q6
3953

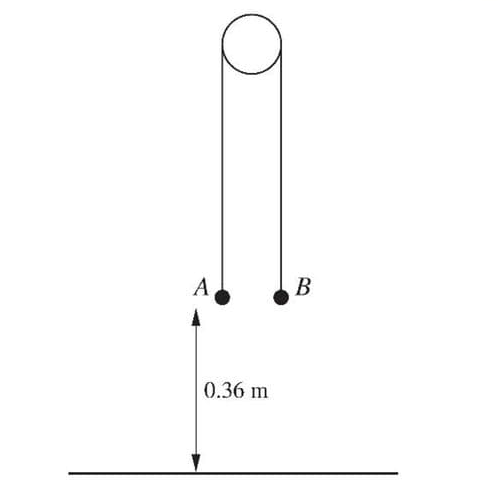

Particles A and B are attached to the ends of a light inextensible string which passes over a smooth pulley. The system is held at rest with the string taut and its straight parts vertical. Both particles are at a height of 0.36 m above the floor (see diagram). The system is released and A begins to fall, reaching the floor after 0.6 s.

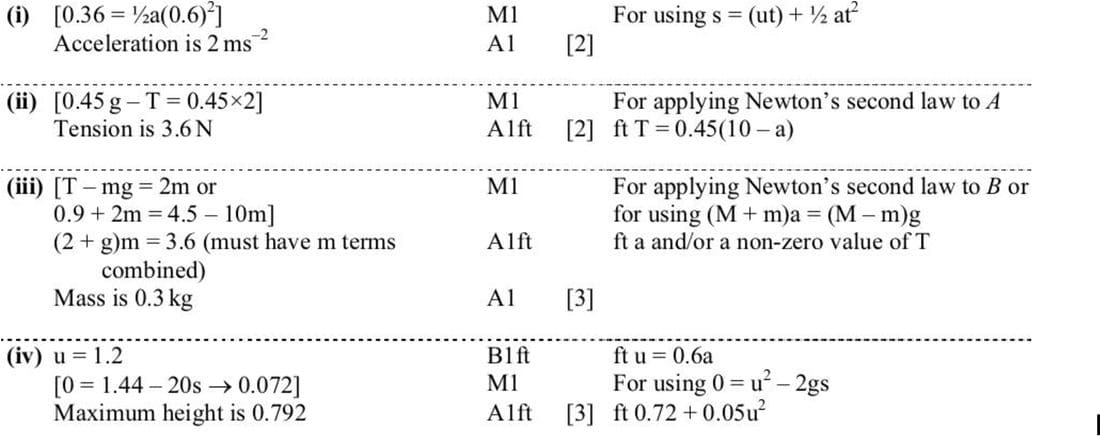

- Find the acceleration of A as it falls. [2]
The mass of A is 0.45 kg. Find
- the tension in the string while A is falling, [2]
- the mass of B, [3]
- the maximum height above the floor reached by B. [3]
