9709 P43 - Jun 2016 - Q6

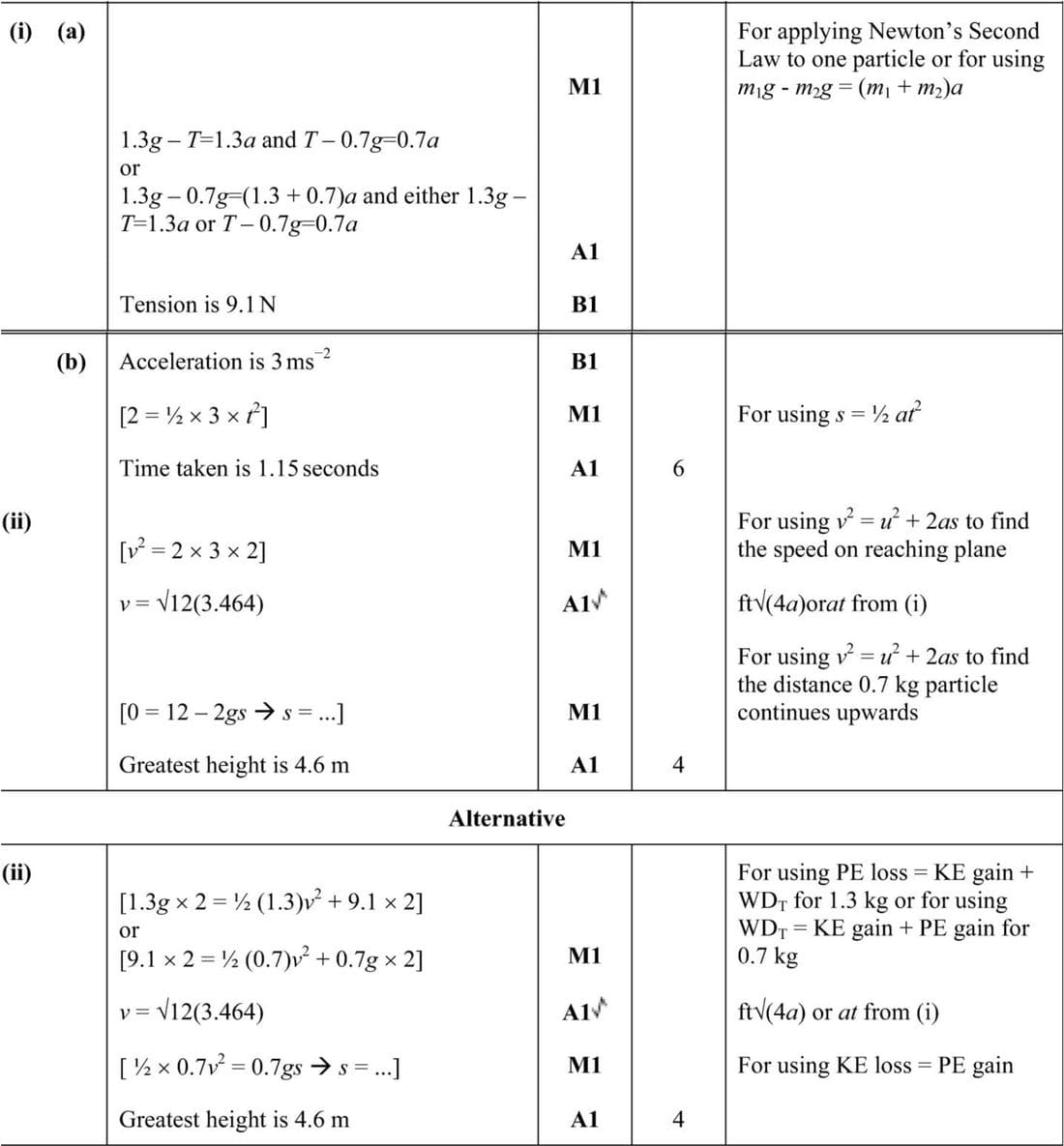

3937
Two particles of masses 1.3 kg and 0.7 kg are connected by a light inextensible string that passes over a fixed smooth pulley. The particles are held at the same vertical height with the string taut. The distance of each particle above a horizontal plane is 2 m, and the distance of each particle below the pulley is 4 m. The particles are released from rest.
- Find
- the tension in the string before the particle of mass 1.3 kg reaches the plane,
- the time taken for the particle of mass 1.3 kg to reach the plane.
- Find the greatest height of the particle of mass 0.7 kg above the plane.
