June 2022 p42 q3
3934
Two particles A and B, of masses 2.4 kg and 1.2 kg respectively, are connected by a light inextensible string which passes over a fixed smooth pulley. A is held at a distance of 2.1 m above a horizontal plane and B is 1.5 m above the plane. The particles hang vertically and are released from rest. In the subsequent motion A reaches the plane and does not rebound and B does not reach the pulley.
(a) Show that the tension in the string before A reaches the plane is 16 N and find the magnitude of the acceleration of the particles before A reaches the plane.
(b) Find the greatest height of B above the plane.

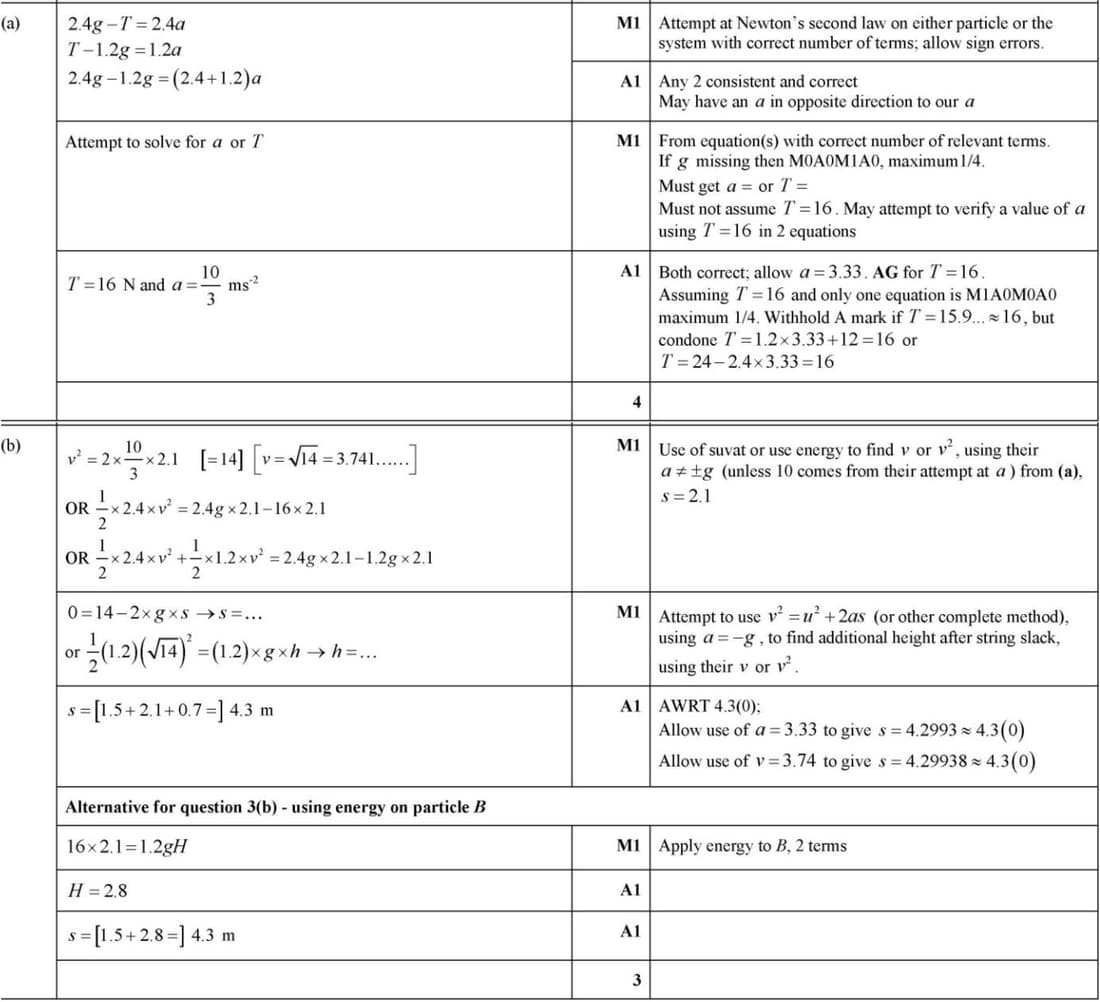

Solution
(a) Applying Newton's second law to particle A:
\(2.4g - T = 2.4a\)
For particle B:
\(T - 1.2g = 1.2a\)
Adding these equations:
\(2.4g - 1.2g = (2.4 + 1.2)a\)
\(1.2g = 3.6a\)
\(a = \frac{1.2g}{3.6} = \frac{10}{3}\) m/s²
Substituting \(a\) back into one of the equations:
\(T = 1.2g + 1.2 \times \frac{10}{3}\)
\(T = 12 + 4 = 16\) N
(b) Using energy conservation for particle B:
Initial potential energy = \(1.2g \times 1.5\)
Final potential energy = \(1.2g \times h\)
Using \(v^2 = u^2 + 2as\) with \(v^2 = 2 \times \frac{10}{3} \times 2.1\)
