9709 P41 - Jun 2016 - Q5
3930

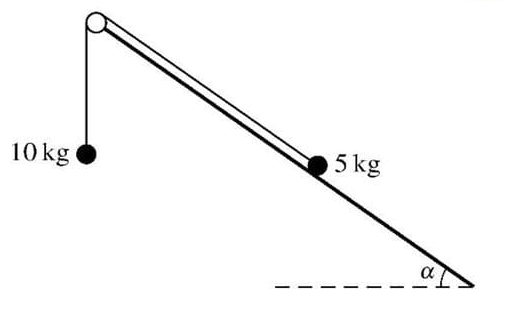

Two particles of masses 5 kg and 10 kg are connected by a light inextensible string that passes over a fixed smooth pulley. The 5 kg particle is on a rough fixed slope which is at an angle of \(\alpha\) to the horizontal, where \(\tan \alpha = \frac{3}{4}\). The 10 kg particle hangs below the pulley (see diagram). The coefficient of friction between the slope and the 5 kg particle is \(\frac{1}{2}\). The particles are released from rest. Find the acceleration of the particles and the tension in the string.

problem image 3930

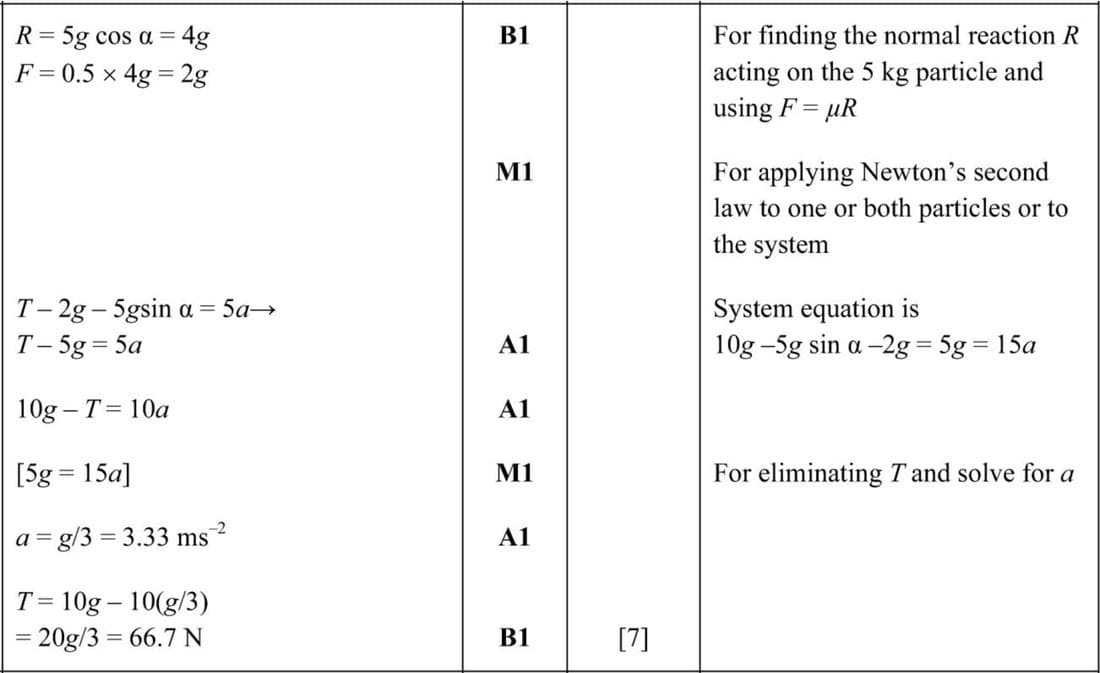

Solutions locked. Please sign in with access to view them.
