Nov 2004 p4 q1
3906

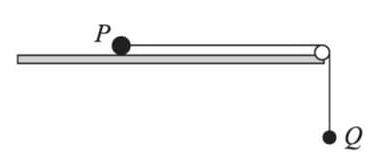

Two particles P and Q, of masses 1.7 kg and 0.3 kg respectively, are connected by a light inextensible string. P is held on a smooth horizontal table with the string taut and passing over a small smooth pulley fixed at the edge of the table. Q is at rest vertically below the pulley. P is released. Find the acceleration of the particles and the tension in the string.

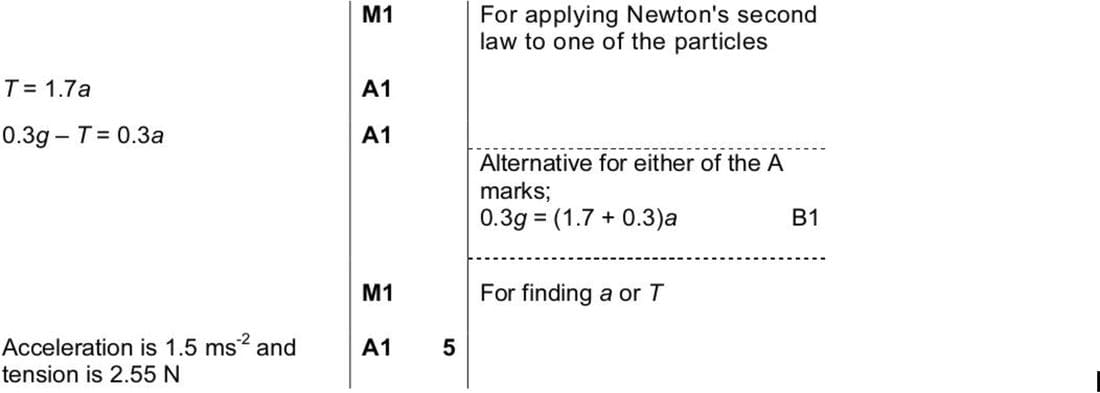

Solution
Let the acceleration of the system be a and the tension in the string be T.
For particle P on the table, applying Newton's second law:
\(T = 1.7a\)
For particle Q hanging vertically, applying Newton's second law:
\(0.3g - T = 0.3a\)
Substitute the expression for T from the first equation into the second equation:
