June 2005 p4 q4
3905

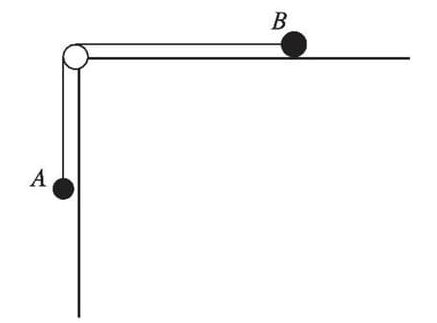

Particles A and B, of masses 0.2 kg and 0.3 kg respectively, are connected by a light inextensible string. The string passes over a smooth pulley at the edge of a rough horizontal table. Particle A hangs freely and particle B is in contact with the table (see diagram).

(i) The system is in limiting equilibrium with the string taut and A about to move downwards. Find the coefficient of friction between B and the table.

A force now acts on particle B. This force has a vertical component of 1.8 N upwards and a horizontal component of X N directed away from the pulley.

(ii) The system is now in limiting equilibrium with the string taut and A about to move upwards. Find X.

problem image 3905
