Nov 2016 p41 q1
3902

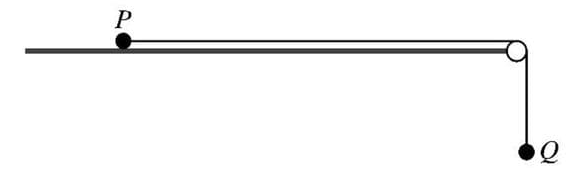

Two particles P and Q, of masses 0.6 kg and 0.4 kg respectively, are connected by a light inextensible string. The string passes over a small smooth light pulley fixed at the edge of a smooth horizontal table. Initially P is held at rest on the table and Q hangs vertically (see diagram). P is then released. Find the tension in the string and the acceleration of Q.
Solution

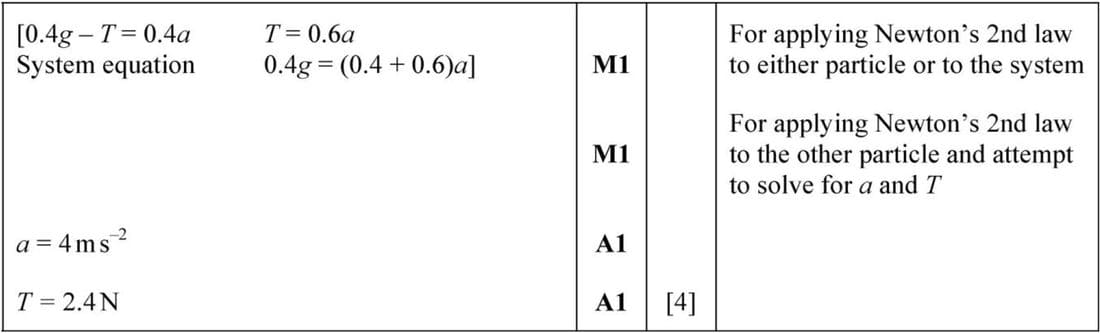

Let the tension in the string be T and the acceleration of the system be a. For particle Q (mass 0.4 kg), applying Newton's second law gives:
\(0.4g - T = 0.4a\)
For particle P (mass 0.6 kg), applying Newton's second law gives:
