9709 P43 - Jun 2019 - Q2
3716

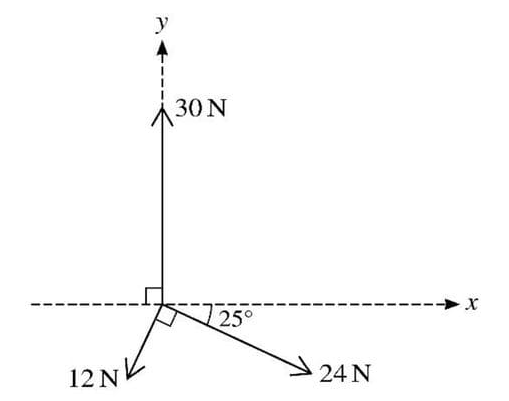

Coplanar forces of magnitudes 12 N, 24 N, and 30 N act at a point in the directions shown in the diagram.

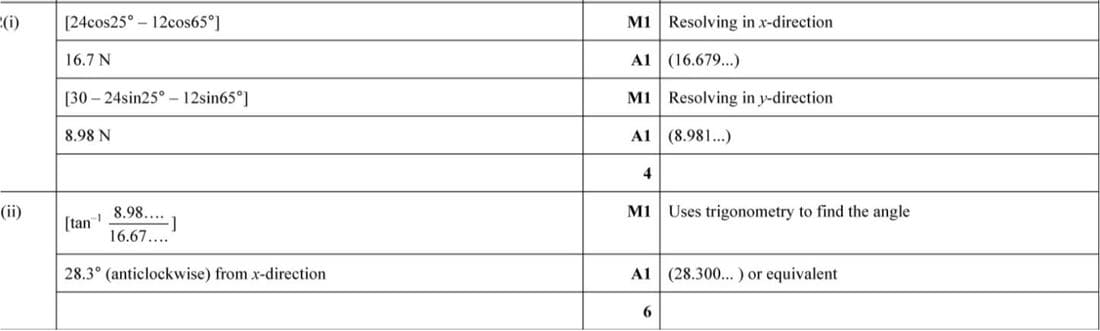

(i) Find the components of the resultant of the three forces in the x-direction and in the y-direction.

Component in x-direction...

Component in y-direction...

(ii) Hence find the direction of the resultant.

problem image 3716
