9709 P43 - Nov 2019 - Q3
3715

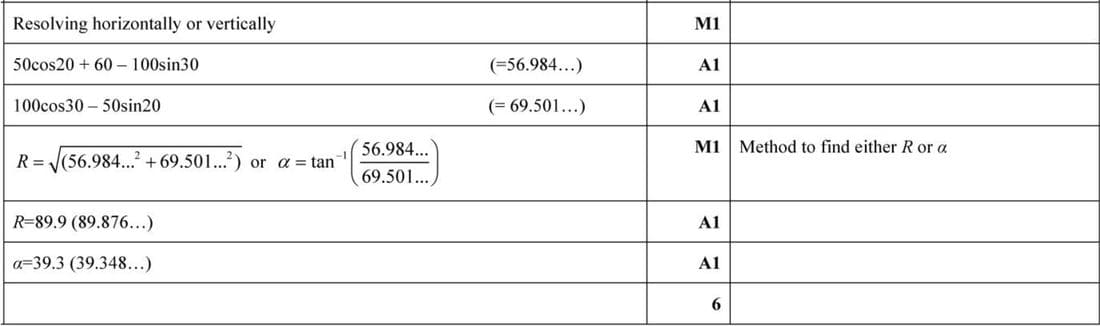

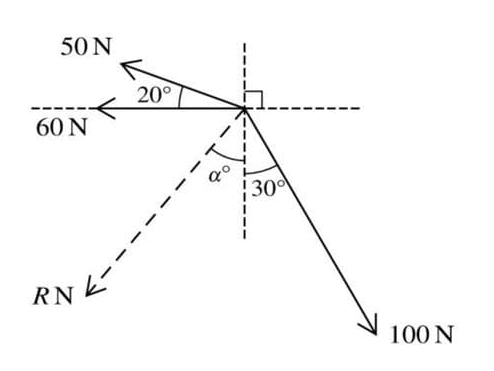

Three coplanar forces of magnitudes 50 N, 60 N, and 100 N act at a point. The resultant of the forces has magnitude \(R N\). The directions of these forces are shown in the diagram. Find the values of \(R\) and \(\alpha\).

problem image 3715
